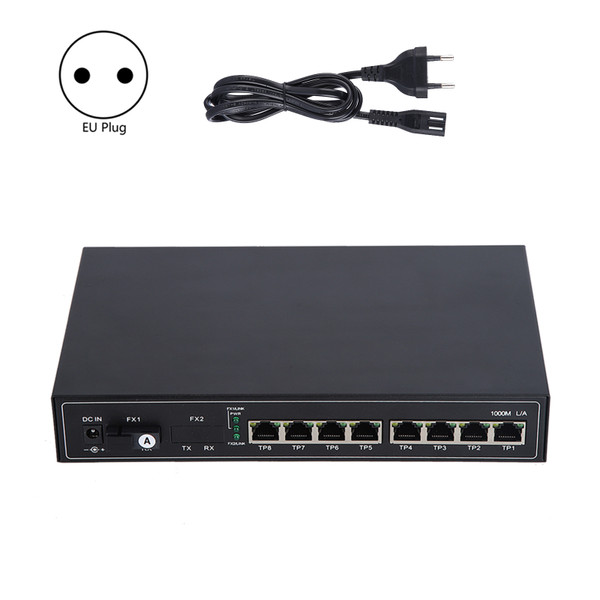

Fiber Optic Switch Gigabit 1 Optical 8 Electricity Single Mode Single Fiber Optical Fiber Media Converter 100‑

Item Type: Fiber Optic Switch
Material: Aluminum Alloy
Model: TBC-MC3718GES20A
Standard Protocol: IEEE802.3u/z/ab, 10Base-T, 100Base-TX, 1000Base-X
Band Width: Electrical Port: 8 x 10/100M Optical Port: 1.25G
Working Mode: Full Duplex/Half Duplex, with Full Duplex/Half Duplex Auto Negotiation Function
Interface: Electric Port: RJ45 Optical Port: SC/FC/ST/LC
LED Indicator: PWR, FX1/LINK, 1000M, L/A
UTP Network Cable: Cat5 UTP (within 100m)
Fiber Type: 9/125, (up to 20-120km)
50/125, 62.5/125μm (up to 2km)

Features

1、Through the use of switching technology and store and forward technology to realize the data before the two network connection media, support 12K effective Media Access Control address table, support Media Access Control address automatic learning and aging.
2、Convert 8 independent 10/100Base‑TX twisted pair electrical signals and 1 independent 1000Base‑FX optical signal to each other.
3、Supports multi fiber multi mode, dual fiber single mode, single mode single fiber and other optical fiber transmission.
4、Support physical isolation and logical isolation, realize the selection of exchange function and physical isolation function through one key, convenient on site debugging, stable and reliable.
5、The network port supports full duplex and half duplex auto sensing and control, and automatically detects and corrects incorrect poles on each port of the twisted pair.

Package List

1 x Fiber Optic Switch

1 x Plug

1 x User Manual
