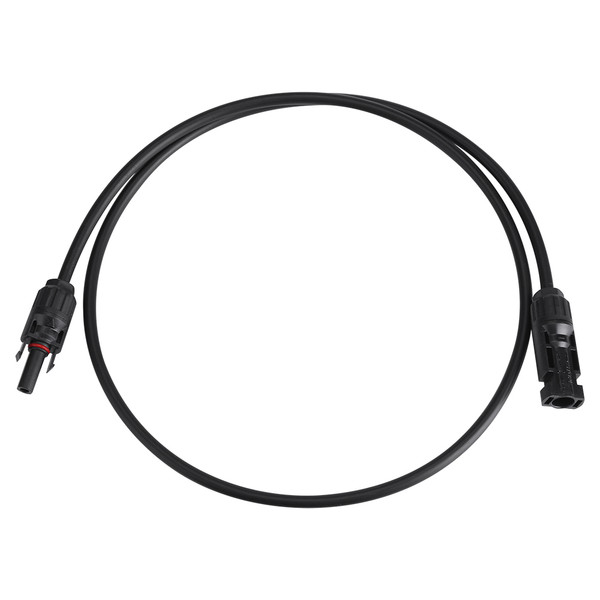

Solar Panel Extension Cable PV Wire with Male Female Connectors Adapter

Features:
The connector has high resistance against UV, anti-aging, water and dust proof.
The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness.
Male and female connectors have stable self-locking system, easy to open and close.
Suitable for solar power station, PV connector and PV junction box.
High quality product ensures long durability and highly safety, approved by TUV and CE.
Specifications:
Condition: 100% Brand New
For Connector:
Working Current: 30A
Contact Resistance: ≤0.5mΩ
Insulation Resistance: ＞500MΩ
Working Temperature: -40 ℃~ + 105 ℃
Protection Level: IP67
Safety Level: 2
Insertion Force: ≤50N
Withdrawal Force: ≥50N
Insulation Material: PPO, Black
Contact: Copper cn, Nickel sn
Flammability Rating: UL94-VO
Terminal Connection: Crimp
For Cable:
Cable Cross-section: 4mm² / 6mm²
Cable OD Range: 4mm²: 3mm-5mm   6mm²: 5mm-7mm
Rated Current: 70A
Weight: approx. 87~289g
Package Included:
1 x Solar Extension Cable with Connector

Features

1、​The connector has high resistance against UV, anti-aging, water and dust proof
2、The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness
3、Male and female connectors have stable self-locking system, easy to open and close
4、Suitable for solar power station, PV connector and PV junction box
5、High quality product ensures long durability and highly safety, approved by TUV and CE
