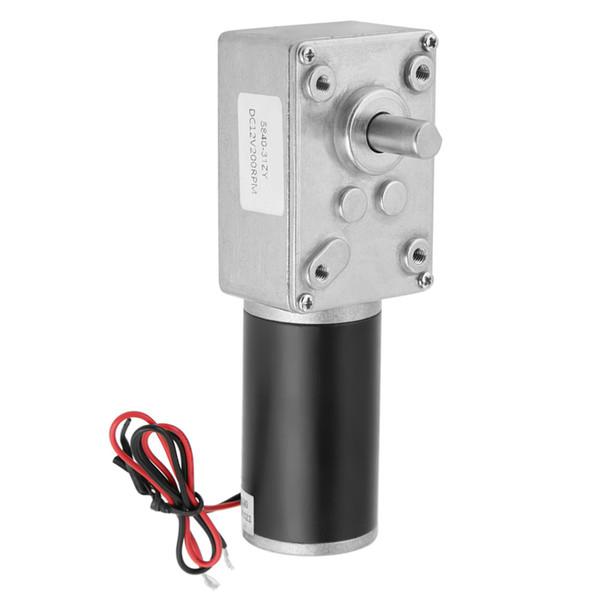

12V 200RPM 5840‑31ZY Permanent Magnet DC Turbo Worm Geared Motor Reduction Motor

Features:
Brand new and high quality
This is DC worm gear motor, CW CCW direction can change by different connection.
The worm gear motor with self-locking, in the case in the absence of electric motors, the output shaft is not to move, that is self-locking.
The gearbox output shaft direction vertically with motor shaft, so the entire body is very short, widely used by which installation sizes have strictly required.
Used in electrical appliances including remote control curtains, paper shredders and copying machines.
Specifications:
Model: 5840-31ZY
Rated power: 21W
Rated voltage: 12V
Rated current: 2A
Rated speed: 200 RPM
Rated moment of force: 0.8NM
Wiring method:
CW: Red: "+", Black: "-"
CCW: Red: "-", Black: "+"
Efficiency: 80%
Motor length: 11.5cm / 4.53in
Weight: 364g
Package included:
1 x Geared Motor

Features

1、Brand new and high quality
2、This is DC worm gear motor, CW CCW direction can change by different connection
3、The worm gear motor with self‑locking, in the case in the absence of electric motors, the output shaft is not to move, that is self‑locking
4、The gearbox output shaft direction vertically with motor shaft, so the entire body is very short, widely used by which installation sizes have strictly required
5、Used in electrical appliances including remote control curtains, paper shredders and copying machines
