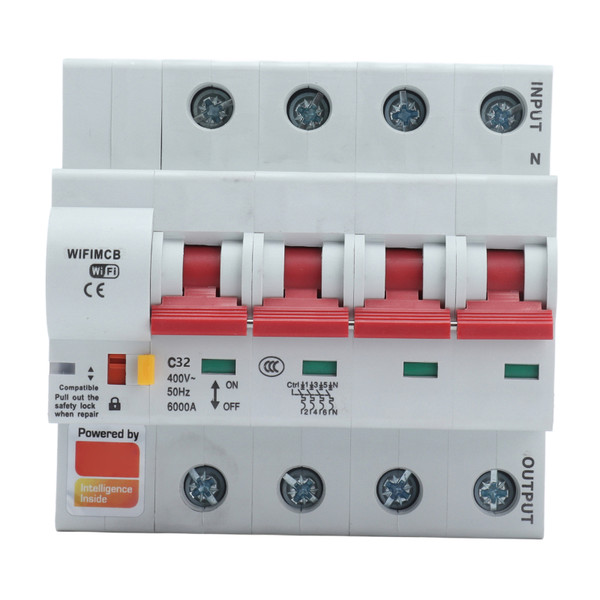

Product Overview
Material: PA66-DSM Flame Retardant Shell
Rated Voltage: AC 400V
Nominal Short Circuit Breaking Capacity: nic: 6kA Ics: 6kA.
Rated Impulse Withstand Voltage: 6000V
Number of Poles: 4P
Working Temperature: -25℃~+65℃
Protection Level: IP20
Mechanical Life: ≥10000 Times
Electrical Life: ≥6000 Times
Instantaneous Trip Form: Type C
Control Mode: Working mode, pairing mode.
Start Method: WiFi mobile phone APP remote switch, Bluetooth.
Trip Method: Over current trip.
Application Scope: For isolated island power supply, tower equipment, outdoor lighting, house power supply, field engineering, mountain facility, street light control.
Features
1、Remote Control: Supports WiFi and and Bluetooth connection. When there is interference and WiFi is disconnected, Bluetooth is connected for work.
2、Stable Working: The impulse withstand voltage is 6000V, which promises stable operation and long service life even under over voltage conditions.
3、Great Service: Powerful and professional clouds server will provide you with reliable and safe background services, very practical and efficient.
4、Easier Pairing: Enables simultaneous pairing of multiple products in a variety of specification, and the pairing is very quick and convenient.
5、Security Lock: Equipped with safe lock, the electric maintenance is safe and simple, and the circuit breaker can also prevent contact interference.
Package List
1 x Circuit Breaker
1 x User Manual
Package Weight and Dimension
| Weight | 1.31 lb |
| Width | 4.29 Inch |
| Height | 3.9 Inch |
| Length | 4.29 Inch |
