Product Overview

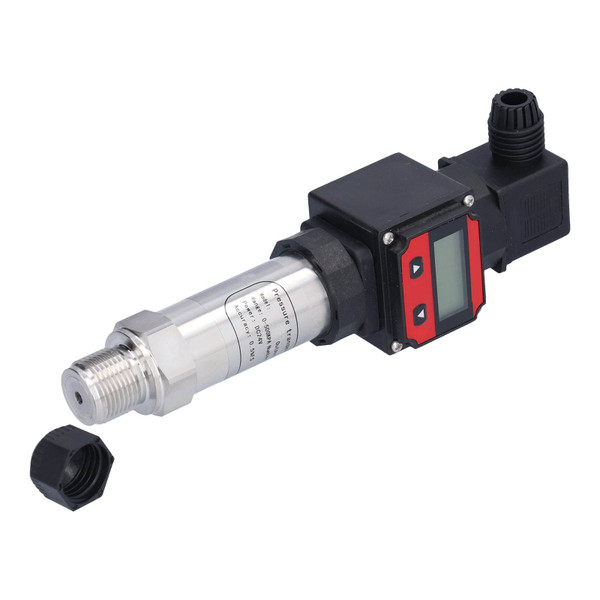

Item Type: Digital Pressure Transmitter
Material: Aluminum alloy
Power Supply: 24V DC
Output Signal: 0-5V
Compensation Temperature: -10℃~70℃
Ambient Humidity: 0%-95%RH (no condensation)
Shell Protection: IP65
Pressure Type: Gauge pressure, absolute pressure, negative pressure
Zero Temperature Drift: ±0.01%F.S/C (within temperature compensation range)
Sensitivity Temperature Drift: +0.03%F.5/C
Overload Pressure: 200%FS
Long-Term Stability: ±0.1%F.S/year
Natural Frequency: 5kHz-650kHz
Material: Aluminum alloy
Power Supply: 24V DC
Output Signal: 0-5V
Compensation Temperature: -10℃~70℃
Ambient Humidity: 0%-95%RH (no condensation)
Shell Protection: IP65
Pressure Type: Gauge pressure, absolute pressure, negative pressure
Zero Temperature Drift: ±0.01%F.S/C (within temperature compensation range)
Sensitivity Temperature Drift: +0.03%F.5/C
Overload Pressure: 200%FS
Long-Term Stability: ±0.1%F.S/year
Natural Frequency: 5kHz-650kHz
Features
1、The pressure transmitter adopts a diffused silicon core, the response speed is only 8ms, and the standard signal output can be guaranteed.
2、The pressure transmitter has a digital display LCD, and the measurement data is clear and accurate.
3、The power supply is 24V DC, the wiring is simple and not messy, and the operation is more stable.
4、The shell is made of aluminum alloy, which is light and corrosion resistant, and can be used for a long time.
5、Wide range of applications, can be used to measure hydraulic pressure, oil pressure, air pressure, water pressure and other media.
Package List
1 x Pressure Transmitter
Package Weight and Dimension
| Weight | 0.7 lb |
| Width | 2.34 Inch |
| Height | 1.95 Inch |
| Length | 7.8 Inch |
