DPS605U 0-60V 0-5A 300W Switching DC Power Supply 4 Digits Display LED High Precise Adjustable Mini Power Supply

Specifications:
Material: Aluminium alloy
Model: DPS605U
Output Voltage: 0～60V
Output Current: 0～5A
Output Power: 300W
Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
Working Temperature: 0~40℃; Humidity: <80%RH
Storage Temperature: -10~70℃; Humidity: <70%RH
CV:
Voltage Stability: ≤0.1% ± 3mV
Load Stability: ≤0.1% ± 3mV
Noise: ≤20mVrms (effective value)
CC:
Current Stability: ≤0.1% ± 3mA
Load Stability: ≤0.2% ± 3mA
Noise: ≤5mArms (effective value)
conservation Mode: Current limiting conservation/short circuit alarm stop output and self recovery
Display: Four digit digital tube, three window display: voltage, current, power
Display Accuracy: 0.5% ± 3 digits
Display Resolution: voltage 00.01V; current 0.001A
Fuze: 3A
Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
Item Weight: 1571g / 55.42oz
Package Weight: 1737g / 61.29oz
Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in

Features

1、USB Quick Charging: the machine has built-in fast charging protocol identification chip that supports USB fast charging function.
2、Safety Operation: it has over voltage conservation(OVP), over current conservation(OCP), over temperature conservation and the upgraded short circuit alarm function.

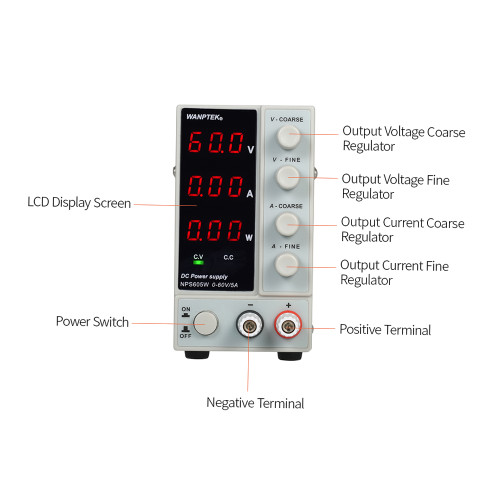

3、Adjustable Output Voltage \u0026 Current: output voltage and output current can be continuously adjusted between 0 and nominal value with fine regulating and coarse regulating.
4、Clearly Display \u0026 Functional: LED 4 digits display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
5、Wide Application: can be used in mobile phone maintenance, computer maintenance, electrical maintenance, school laboratories scientific research and production line use and all other need DC regulated power supply.
6、Supporting Fast Charging Protocols Include: compatible with qualcomm QC2.0, QC3.0, iOS, Huawei FCP, SCP Samsung AFC and other fast charging protocols

Package List

1 * DC Power Supply
1 * Power Cord
1 * Clip Line
1 * User Manual (English)
