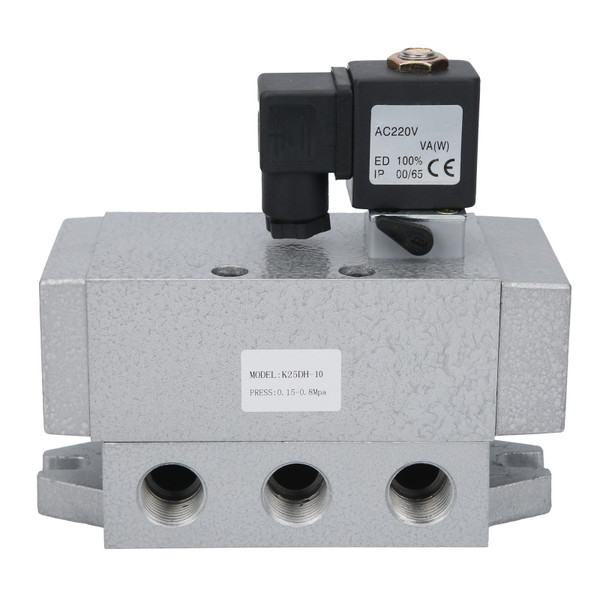

Electric Solenoid Valve G3/8in 2 Position 5 Way Single Control Directional Valve K25DH‑10AC220V

Item Type: Electric Solenoid Valve
Material: Aluminum alloy
Model: K25DH-10
Interface Diameter (inch): G3/8
Pressure: 0.15～0.8 (mpa)
Reversing Time (s): ≤0.08
Maximum Allowable Commutation Frequency (Hz): 6
Discharge Flow Rate (cm³/min): 100
Environmental Temperature (℃): -5~50
Medium Temperature (℃): -5~50
Life (thousand times): ≥1500
How to use:
1. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on).
2. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed.
3. Suitable to disassemble and wash or add some lubricating oil for long storage time or long-term use or unskilled action.

Features

1、Possess very reliable performance thanks to the spacer‑type spool valve structure
2、K series solenoid valves have a wide range of applications in many fields. Possess many other features in addition to reliable performance
3、In the structure design of the K series, there have automatic compensation function for seal wear
4、K series solenoid valve has become the choice of most users in the working medium. Has a larger flow capacity than the Q series solenoid valve. Can meet the needs of large flow media
5、K series solenoid valve possess compact structure, the base plate uses a takeover structure, which makes installation and maintenance work more convenient

Package List

1 x Electric Solenoid Valve
