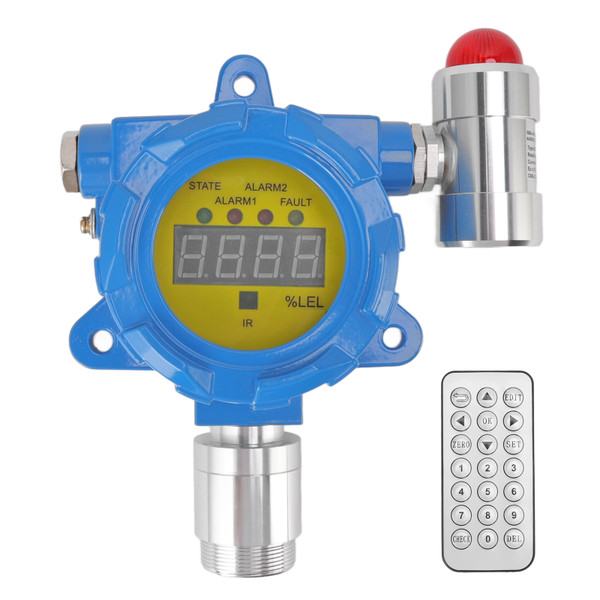

Product Overview
Material: Die Cast Aluminum
Product Size: Length: Approx. 20cm/7.9in, Width: Approx. 18.5cm/7.3in, Height: Approx. 9.2cm/3.6in
Bolt Hole Product Size: Approx. 11.5 x 11.5cm / 4.5 x 4.5in
Gross Weight: Approx. 1588g/3.5lb
Detection Object: Combustible Gas
Thread Specification: G1 Male Thread
Alarm Mode: Sound (≥ 70dB), Light Alarm, Relay Output Signal
Remote Control Battery (Shipped Without Battery): 1 x Button Battery, CR2025 Type
Detect Gas Pressure: 86-106kPa
Voltage: DC (24±3.6) V
Working Mode: Long Term Continuous Work
Working Environment: Temperature: -10-55℃, Humidity: ≤93%RH (No Condensation)
Measuring Range: 0-100 Percent LEL
Resolution: 1 Percent LEL
Low, High Alarm Point: 20 Percent, 50 Percent LEL
Can be used to detect gas in refineries, chemical plants, LPG stations, boiler rooms, fire fighting, paint spraying plants and other places where gas is present
Features
1、[Explosion Proof] Industrial gas alarm has a one piece die cast aluminum shell, thickened and explosion proof, wear resistant and durable, high strength.
2、[With Dust Net] Industrial gas detector is designed with breathable dust net, which can guard against dust larger than 1mm and extend the service life of the sensor.
3、[Sensitive] Professional combustible gas alarm detector adopts advanced micro power technology sensor, with rapid response and sensitive detection.
4、[Multi Application] Combustible gas alarm has can be widely used in oil refineries, chemical plants, boiler rooms, fire fighting, spray painting plants, etc.
5、[Easy To Use] Gas leakage monitor has clear digital display, can provide sound and light alarm, with remote control, easy to control, can work continuously for a long time.
Package List
1 x Industrial Gas Alarm Host
1 x Remote Control (Battery Not Included)
1 x Instruction Manual
Package Weight and Dimension
| Weight | 3.59 lb |
| Width | 8.19 Inch |
| Height | 4.68 Inch |
| Length | 8.58 Inch |
