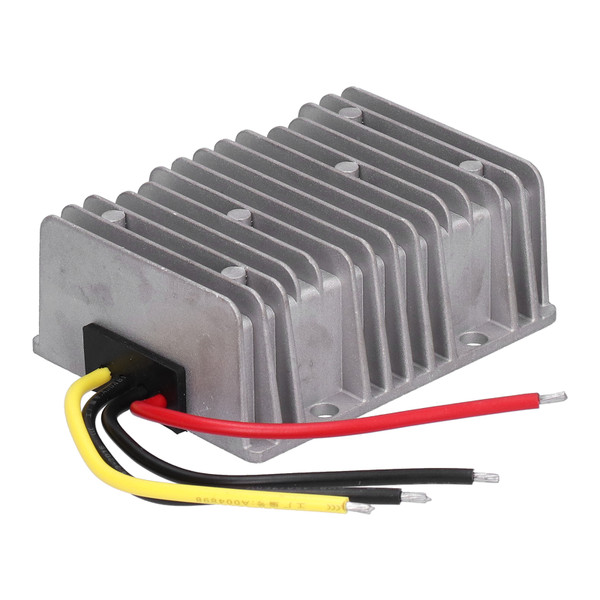

Power Converter BoostBuck Transformer Voltage Protection Module 940V to 12V 20A 240W

Item Type: Power Converter
Material: Organic silicone + aluminum
Model: GYVRM-WD1L121220
Rated Output Current: 20A
Output Power: 240W
Protection Level: IP67
Conversion Efficiency: Up to 96%
Working Temperature: -20℃~+80℃
Installation Line Length: Approx. 13cm / 5.1in

Features

1、The boost‑buck module has an input voltage range of DC 9‑40V, which is suitable for a wide range of boost or buck voltage.
2、Automatically cut off and restore the circuit, with automatic protection functions such as overcurrent, overvoltage, overheating, short circuit, etc.
3、Adopt potting and waterproof technology, and use aluminum shell to provide all‑round protection and more stable and reliable.
4、The silicone potting is waterproof, dustproof and shockproof, suitable for use in various harsh environments.
5、Used for surveillance cameras, electric fans, water pumps, motors, LED lights, security systems, audio equipment, industrial electrical equipment, etc.

Package List

1 x Power Converter

1 x Wiring Drawing
