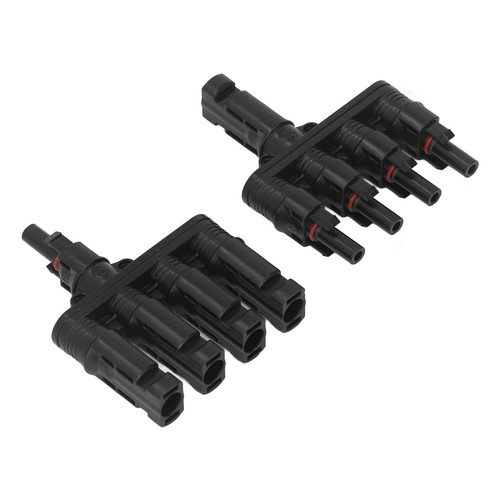

Product Overview
Material: PC, PPO
Weight: Approx. 235g/8.3oz
Rated Current: 30A
Waterproof Grade: IP67(Box inserted state)
Contact Protection: IP2X (Non box inserted state)
Contact Resistance: 0.5mΩ
Safety Level: II
Flame Rating: UL94 V0
Insertion Force: ≤ 50N
Pullout Force: ≥ 50N
Adaptor Diameter: 2.5㎡ - 6㎡ AWG14-AWG10
Ambient Temperature: - 40℃ - +110℃
Length of Adapter: 11cm/4.3in
Features
1、Waterproof: The waterproof ring in the male connector is designed for waterproof and dust proof, and the waterproof grade is IP67 under the box inserted state.
2、Strong Conductivity: The branch solar connector adopts premium inner core, and the surface is tinned, so the branch solar connector has strong conductivity.
3、High Temperature Resistance: The shell is made of insulating and flame retardant materials, which are heat resistant, anti corrosion, anti oxidation, UV proof and high temperature resistant.
4、Applicability: The connector can be connected to solar panels in parallel, and is suitable for various solar power generation equipment. The rated voltage is 1000V DC and the rated current is 30A.
5、Easy to Use: The plug can be quickly and easily installed and removed without any additional instruments. The male and female heads are connected by crimping, which is easy to connect and disconnect and not easy to fall off.
Package List
1 Pair x Branch Solar Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 5.07 Inch |
| Height | 1.56 Inch |
| Length | 5.85 Inch |
