Product Overview
Features:
Made of high quality metal material, wear-resistant, corrosion-resistant.
Widely used in punching machine, lathe machine, cutting machine, milling machine, etc.
Pull the handle with your hand, the plunger is pushed and the oil in the cylinder is excluded. Release it, the plunger absorb the oil under the spring force.
The pump can be combined with a throttling distributor to form a lubrication system. It is recommended to use oil viscosity N20-N1000.
Products use high-quality seals, not easy to leak.
Specification:

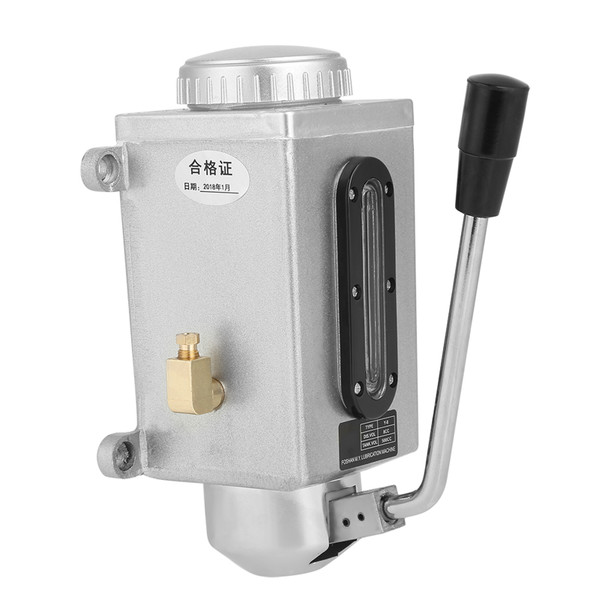

Name: Manual Pump Hand
Pump material: Metal
Pump shaft position: side vertical
Impeller suction method: single suction
Drive mode: manual
Transmission medium: oil
Flow: 8m3/h
Discharge capacity: 8ml/min
Max.discharge pressure: 15kgf/cm²
Capacity: 500CC
Discharge port: two port(left & right)
Weight: 949g
Package Included:
1 x Manual Lubricating Pump
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Made of high quality metal material, wear-resistant, corrosion-resistant.
Widely used in punching machine, lathe machine, cutting machine, milling machine, etc.
Pull the handle with your hand, the plunger is pushed and the oil in the cylinder is excluded. Release it, the plunger absorb the oil under the spring force.
The pump can be combined with a throttling distributor to form a lubrication system. It is recommended to use oil viscosity N20-N1000.
Products use high-quality seals, not easy to leak.
Specification:
Name: Manual Pump Hand
Pump material: Metal
Pump shaft position: side vertical
Impeller suction method: single suction
Drive mode: manual
Transmission medium: oil
Flow: 8m3/h
Discharge capacity: 8ml/min
Max.discharge pressure: 15kgf/cm²
Capacity: 500CC
Discharge port: two port(left & right)
Weight: 949g
Package Included:
1 x Manual Lubricating Pump
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、Made of high quality metal material, wear-resistant, corrosion-resistant.
2、Widely used in punching machine, lathe machine, cutting machine, milling machine, etc.
3、Pull the handle with your hand, the plunger is pushed and the oil in the cylinder is excluded. Release it, the plunger absorb the oil under the spring force.
4、The pump can be combined with a throttling distributor to form a lubrication system. It is recommended to use oil viscosity N20-N1000.
5、Products use high-quality seals, not easy to leak.
Package Weight and Dimension
| Weight | 2.05 lb |
| Width | 5.46 Inch |
| Height | 6.63 Inch |
| Length | 8.97 Inch |
