Grinder Electromagnetic Oil Pump Lubrication for Grinding Machine 400‑500cc/min 13W AC110V

Item Type: Grinder Electromagnetic Oil Pump
Material: Stainless steel
Uses: Suitable for small processing machinery (such as lathes, milling machines, grinders)
Specification: High-quality domestic AC110V
Power: 13W
Inlet Suction: 40KPa
Spit Pressure: 1kgf/cm²
Discharge Volume: 400-500cc/min
Product Description:
This pump is a plunger pump uniquely designed for accuracy molding grinders. The pump core worker introduces piston movement during operation. The pump core is equipped with a one-way valve. This design is mainly designed to block the pump core when sand and dust in the lubricating oil enters. Sand and dust enter the guide rail, causing greater damage to the guide rail; if the operator notices that there is no oil supply from the oil window, he must immediately disassemble the pump core to clean the one-way valve and the cylinder and refill the guide rail oil. If it is blocked, the oil pump will burn out, causing damage to the guide rail.

Features

1、The product has professional lubrication and cooling, suitable for grinding machines, milling machines, drilling machines, lathes and other small processing machinery
2、According to the working principle of electromagnetic induction, the power loss is low
3、This pump is a plunger pump that is uniquely designed for accuracy forming grinders, with piston movement
4、The discharge volume is 400‑500cc/min and the spit pressure is 1kgf/cm² with stable performance
5、High quality stainless steel material can make sure the durability and stability of the product

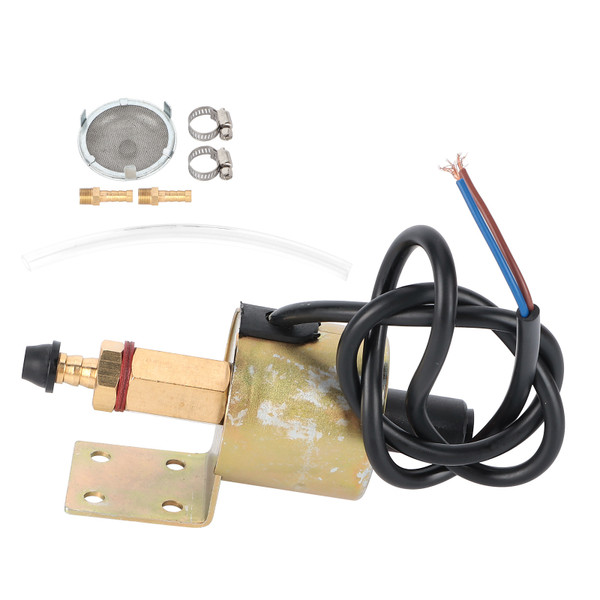

Package List

1 x Electromagnetic Oil Pump for Grinder

1 x Filter

2 x Connector

2 x Clamp

1 x High Pressure Pipe
