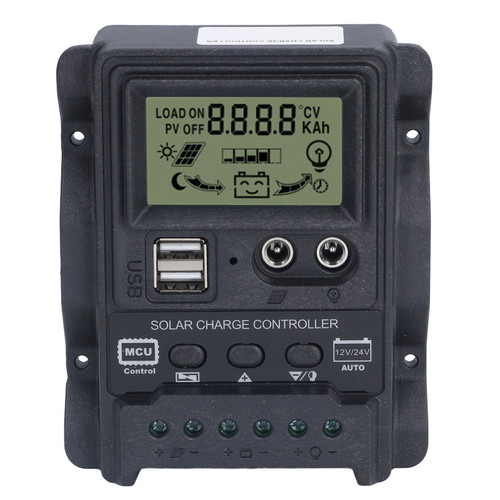

Product Overview
Material: ABS
Model: K1688
Colour: Black
System Voltage: 12V/24V Automatic Adaptation
Maximum Photovoltaic Voltage: 50V
USB Output: 2 USB outputs, 5V/2.5A (Maximum)
Boost Charging Voltage: 14.4V
Floating Voltage: 13.7V (Default Value, Adjustable)
Discharge Cut off Voltage: 10.7V (Default Value, Adjustable)
Discharge Recovery Voltage: 12.6V (Default Value, Adjustable)
Charging Recovery Voltage: 13V
Standby Current: <10mA
Working Temperature: -35~+60℃
Features
1、Main Control Chip: Industrial grade main control chip, complete 3 stage charging management, backflow resistance circuit, ultra low heat generation
2、LCD Display: Large screen LCD display, charging and discharging current display, accumulative power generation and discharge power query, temperature display
3、Light Control + Delay Control: With light control + delay control, adjustable charging and discharging parameters, with functions such as power off memory
4、Dual USB Output: The solar charge controller with dual USB output, maximum current up to 2.5A, support for iPhone charging
5、Self Recovery Type: Built in over current, short circuit protection, open circuit protection, reverse connection protection, all self recovery, non damage to the controller
Package List
1 x Controller
1 x English User Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.56 Inch |
| Length | 5.07 Inch |
