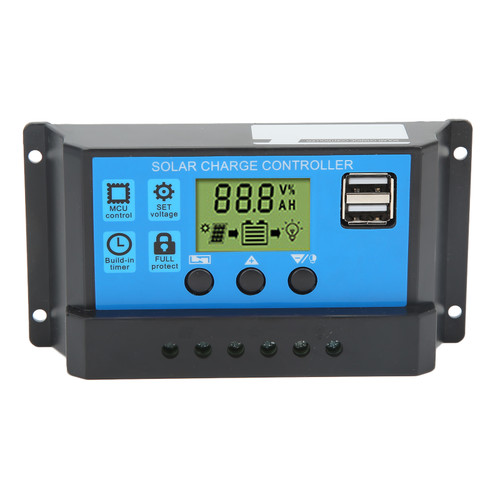

Product Overview
Material: ABS
Gross Weight: 202g / 7.1oz
Product size: 12.5x10x3cm / 4.9x3.9x1.2in
Model: K1688
Light Controlled Light On Threshold: 8V for photovoltaic panel (with delay for light control lamp on) (12V), 16V for photovoltaic panel (with delay for light control lamp on) (24V)
Light Controlled Light Off Threshold: 8V for photovoltaic panel (delay for light control switch off) (12V), 16V for photovoltaic panel (delay for light control switch off) (24V)
USB Output: 2 way USB output, 5V 2.5A (maximum)
Standby Current:<10mA
Working Temperature: - 35-+60 ℃
Purpose: Solar controller
Features
1、Large LCD Display Screen: Display of charging and discharging current; Query of accumulated electricity generated and discharged; Temperature display; Optical control and delay control; The charging and discharging parameters are adjustable; With power off memory and other functions.
2、Dual USB Output: The solar charge controller supports dual USB output, maximum current up to 2.5A, supporting charging for iPhone.
3、Multiple Protection: Built in over current, short circuit protection, open circuit protection, reverse connection protection are all self recovery type, without damaging the controller.
4、Safe Charging: Adopt industrial grade main control chip, complete 3 stage charging management, anti backflow circuit, ultra low heat generation.
5、12V 24V Voltage Automatic Adaptation: Connect the positive and negative poles of the battery to the controller, and the controller will automatically detect the battery voltage.
Package List
1 x Solar Controller
1 x Instruction Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.56 Inch |
| Length | 5.07 Inch |
