Product Overview
Condition: 100% Brand New

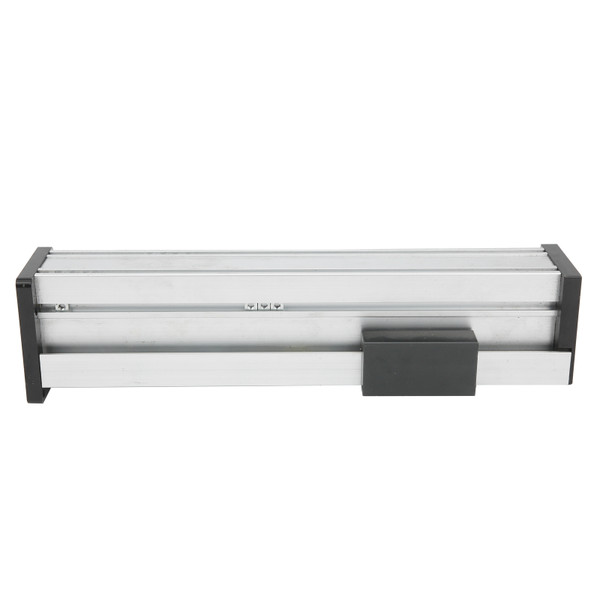

Item Type: Linear Actuator
Material: Aluminum Alloy
Linear module is often referred to as precise electric slide table, servo slide table, linear module, single-axle manipulator, XYZ mechanical arm, single-axle robot, XY table, XY workbench, etc. Single axle manipulator precise electric sliding table is generally driven by servo motor or stepper motor to achieve precise positioning, workpiece positioning, workpiece loading and handling and other actions.
Effective Stroke: Approx. 155mm / 6.1in
Screw Rod Model: KCBX1605/1610
Screw Rod Diameter: Approx. 16mm / 0.6in
Horizontal Load-Bearing: 20kg / 44.1lb(approx.)
Vertical Load Bearing: 10kg / 22lb(approx.)
Repeated Positioning Accuracy: 0.03-0.05mm
Motor Model: 42/57 series stepper motor
Instructions:
1. It can be installed with the motor of the corresponding motor sheet on the sliding table
2. Then use the drive controller power supply after connection (if there is PLC, the controller can not be used)
Item Type: Linear Actuator
Material: Aluminum Alloy
Linear module is often referred to as precise electric slide table, servo slide table, linear module, single-axle manipulator, XYZ mechanical arm, single-axle robot, XY table, XY workbench, etc. Single axle manipulator precise electric sliding table is generally driven by servo motor or stepper motor to achieve precise positioning, workpiece positioning, workpiece loading and handling and other actions.
Effective Stroke: Approx. 155mm / 6.1in
Screw Rod Model: KCBX1605/1610
Screw Rod Diameter: Approx. 16mm / 0.6in
Horizontal Load-Bearing: 20kg / 44.1lb(approx.)
Vertical Load Bearing: 10kg / 22lb(approx.)
Repeated Positioning Accuracy: 0.03-0.05mm
Motor Model: 42/57 series stepper motor
Instructions:
1. It can be installed with the motor of the corresponding motor sheet on the sliding table
2. Then use the drive controller power supply after connection (if there is PLC, the controller can not be used)
Features
1、Rotation movement into a linear motion, with a small frictional resistance.
2、Mounting holes are well‑designed and makes it easy to install on other devices.
3、High precise, heavy load resistance, having long life, low coefficient of friction.
4、20kg / 44.1lb(approx.) Horizontal load bearing and 10kg / 22lb(approx.) of the vertical load bearing.
5、High quality aluminum alloy material manufacturing ensuring maximum durability.
Package List
1 x Linear Actuator
1 x Manual
Package Weight and Dimension
| Weight | 3.29 lb |
| Width | 3.12 Inch |
| Height | 3.12 Inch |
| Length | 12.87 Inch |
