Product Overview
Material: Aluminum alloy
Model: TA 01 45
Maximum Force: 3000N
Stroke: Approx. 100mm / 3.9in
No Load Speed: 4mm/second
Protection Class: IP65
Working Cycle: 10%, work for 2 minutes, stop for 18 minutes
Application: This high speed linear actuator automates the roof of your car, RV, trailer, camper. Also used in trapdoor applications from emergency quick opening windows to escape rooms or amusement parks, also in electric medical beds, electric lift beds, electric lift tables, electric reclining chairs.
Features
1、High Speed Motor: Electro hydraulic actuators are ideal for tubular actuators, and the motor provides high speed motion, which can be used to simplify equipment design while reducing energy costs.
2、Aluminum Alloy Material: The tubular electric actuator is made of industrial grade aluminum alloy material, which has high hardness and is not easy to rust and has a long service life.
3、Compact Design: The overall design of the hydraulic actuator is compact, which can meet the market requirements for low built in size and long stroke.
4、Wear Resistant: The linear electric actuator adopts planetary gear reduction transmission structure, which greatly improves the wear resistance and durability.
5、Wide Application: This high speed linear actuator automates the roof of your car, RV, trailer. Also used in applications ranging from emergency quick opening windows to escape rooms trapdoor applications.

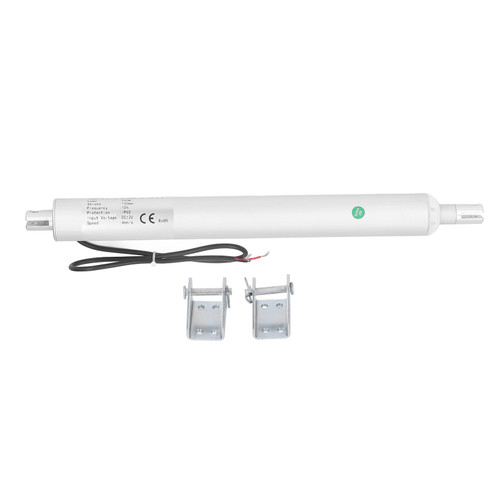

Package List
1 x Linear Electric Actuator
2 x Holder
Package Weight and Dimension
| Weight | 3.18 lb |
| Width | 3.9 Inch |
| Height | 1.95 Inch |
| Length | 16.77 Inch |
