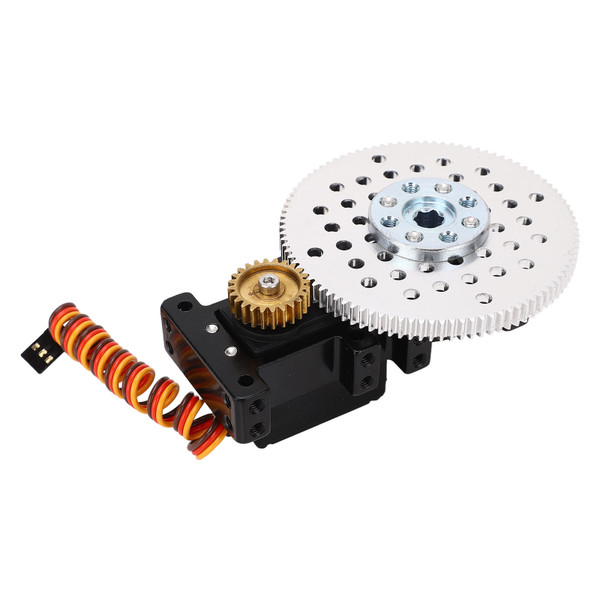

Product Overview
Voltage Range: 4.8-6V
Maximum Stroke: 1.96 Rotation (707˚)
Maximum PWM Range: 600-2400μs
No Load Speed (6.0V): 0.93s/60˚ (65˚/s)
Stall Torsion (6.0V): 52.8 kg.cm (732oz)
Direction: Increase PWM signal counterclockwise
Movement Per Microsecond: 0.39°/μs
Features
1、Dual Mode Design: In the feedback mode, the signal controls the position, and in the continuous mode, the signal controls the speed and direction.
2、Aluminum Frame: The all aluminum frame acts as the mounting and fixing bracket of the servo gear box to improve the heat dissipation effect.
3、8mm Hole Design: The standard 8mm distance grid hole design can drive 8mm hexagonal shaft, or be used to pass through cables, wires, shafts, etc.
4、Stable Rotation: The steel hub output shaft is installed in a pair of bearings for stable rotation, isolate the axial load of the servo gear from the output spline shaft.
5、High Efficiency: The gear box adopts 4:1 external gear ratio, which increases the torsion and accuracy by 4 times, suitable for higher requirements.
6、M4 Thread Hole: The clamping hub on the top of the transmission has M4 thread hole, which can fix other components to the aluminum output gear.
Package List
1 x Servo Gear Box
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.95 Inch |
| Length | 5.85 Inch |
