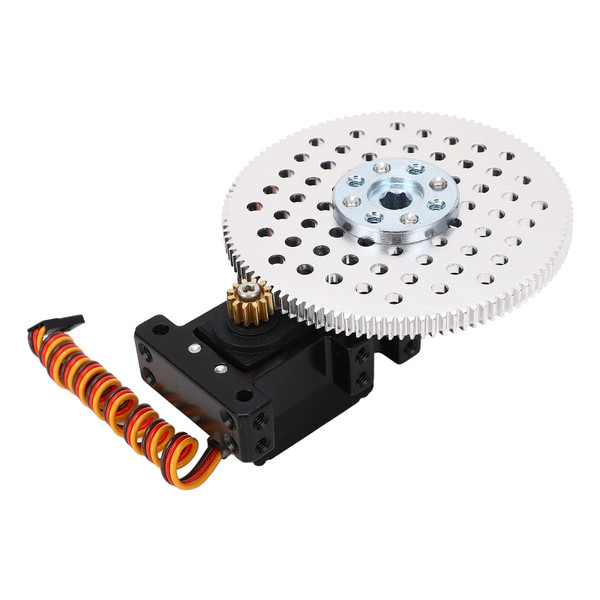

Servo Steering Gear Box 9:1 Ratio M4 Thread Hole Aluminum Alloy Brass Servo Motor Gear 4.8‑6V

Item Type: Servo Steering Gear Box
Material: Aluminum Alloy, Brass
Voltage Range: 4.8-6V
Maximum Stroke: 0.87 rotation (314˚)
Maximum PWM Range: 600-2400microsecond
No Load Speed: (6.0V) 2.10s per 60˚ (9˚ per second)
Stall Torsion: (6.0V) 118.8kg/cm (1647oz)
Direction: Increase PWM signal counterclockwise
Movement Per Microsecond: 0.17˚ per microsecond

Features

1、M4 Threaded Hole: Driven by dual mode servo steering gear, all aluminum frame acts as the mounting and fixing bracket, there are M4 threaded holes on each side of the load bearing skeleton and spacer gear box, standard 8mm distance mesh hole designed, provide a wide installation possibility for compatibility with the entire machine system.
2、Smoothly Rotation: Steel hub output shaft is installed in a pair of bearings to achieve smoothly rotation, and isolate the axial load of servo steering gear from the output spline shaft.
3、Increased Torsion: 9:1 external gear ratio, increases the torsion and accuracy by nine times, a compromise between speed and torsion, by decelerating the servo steering gear, multiplies the torsion on the final output shaft, so the servo gear can be used in more demanding applications.
4、8mm Hex Hole: The 8mm hex hole of the hub shaft can drive 8mm hex shaft or can be used to pass through cables, wires, shafts, etc. to avoid winding and limit the rotation angle of the final gear, while maintaining a clean appearance and protecting the life of the robot.
5、2 Modes: The servo gear box can be used in feedback mode and continuous mode. In feedback mode, your signal controls the position. In continuous mode, your signal controls speed and direction.

Package List

1 x Servo Steering Gear Box
