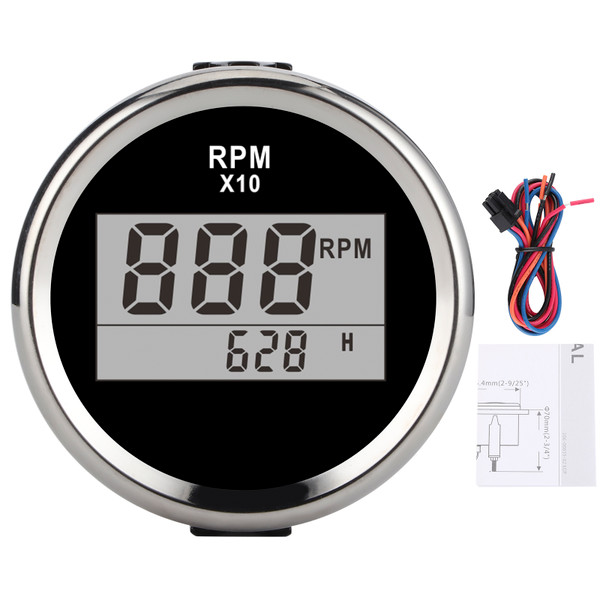

0‑9990RPM Tachometer Gauge IP67 Waterproof Red Backlight 52mm/2in LCD Display 9‑32VBlack Dial Silver Cover

Condition: 100% Brand New
Item Type: Tachometer Gauge
Material: Stainless Steel+Nickel-Plated Plastic
Backlight: Red
Installation Diameter: Approx. 52mm/2in
Operating Voltage: 9-32V DC
Operating Current: ≤60MA
Functions: High Accuracy current tacho/RPM and hour
Operation Mode: LCD display, stepper motor
Connectioning: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal, Orange/Yellow-Blacklight(+9-32VDC)
Indicating Range: 0-9990RPM
Input Signal: Pluse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.
Protection Class: IP67, can work underwater 1m position
Application: Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Features

1、It is suitable for the modification of various vehicles. It uses a stepping motor to drive the pointer, accurately displays the engine speed, and has a clear LCD display.
2、It has the advantages of high indication accuracy, repeatability and versatility, reliability and stability, and relatively simple drive and control.
3、IP67 waterproof and dustproof grade, with curved glass (with anti-fog function), suitable for all ships, boats, yachts, etc.
4、With ultra‑wide working voltage design, long‑term operating voltage is 9‑32V, maximum can up to 36V (less than 1 minute).
5、It is suitable for all stepping gauges and has the characteristics of low power consumption, long service life.

Package List

1 x 0-9990RPM Tachometer

1 x Connecting Cable

1 x Manual
