Product Overview
Condition: Brand New
Item Type: Ultrasonic Module
Material: Semi-conductor
Pins:
VCC pin: connect to VCC power (dc 5V).
Range pin: set the range pin (range). When the module is powered on, the pin is high power, and the range is 3 meters/9.8ft. When the module is powered up, the pin is at a low power level, and the measuring range is 1m / 3.2ft. This pin has a pull resistance inside. When the range pin is suspended, the measuring range is 3 meters / 9.8ft.
Out pin: analog voltage output pin (Out), analog voltage is directly proportional to the measured distance, and the output range is 0~Vcc.
GND pin: connect to external circuit ground.
Item Type: Ultrasonic Module
Material: Semi-conductor
Pins:
VCC pin: connect to VCC power (dc 5V).
Range pin: set the range pin (range). When the module is powered on, the pin is high power, and the range is 3 meters/9.8ft. When the module is powered up, the pin is at a low power level, and the measuring range is 1m / 3.2ft. This pin has a pull resistance inside. When the range pin is suspended, the measuring range is 3 meters / 9.8ft.
Out pin: analog voltage output pin (Out), analog voltage is directly proportional to the measured distance, and the output range is 0~Vcc.
GND pin: connect to external circuit ground.
Features
1、This is an analog output of ultrasonic ranging module, output analog voltage and distance value is proportional.
2、Easy to connect with other systems, ensuring stable and reliable work.
3、Different range can be set according to different application scenarios.
4、This is a low cost but high quality distance sensor module with small power consumption.
5、Easy for installation, reliable quality ensuring stable and excellent performance.
Package List

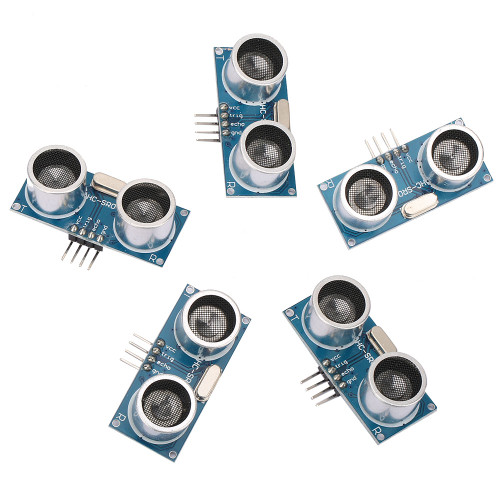

1 x Ultrasonic Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 0.78 Inch |
| Length | 3.9 Inch |
