Product Overview
Features:

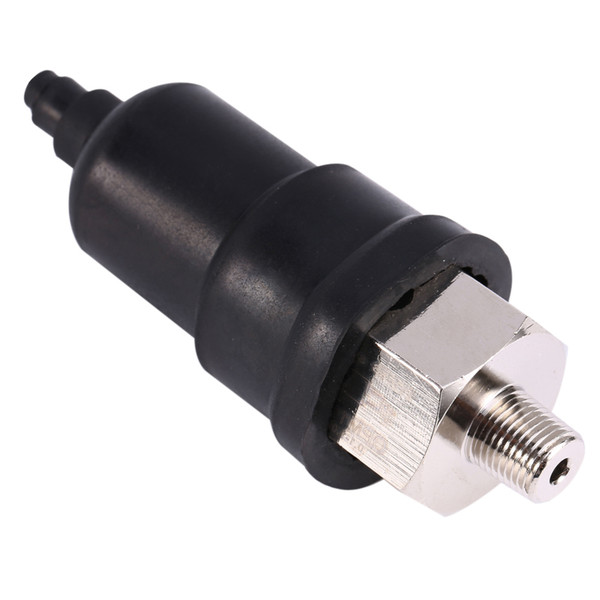

Model:QPM11-NO
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: Male thread
Pressure range: 0.1-1.0 MPA
Work temperature range: -5-60 degree
Connection: 1/8"
Current: 0.5A
Maximum power: 24VA, 100VA
Maximum working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54
Package Included:
1 x Diaphragm type pressure switch
Note:
Adjust the pressure of the size, please screw the two
terminals in the middle of the Hex.
Package include:
1 x Pressure Switch
Note:
New-style and old-style are shipped randomly
Model:QPM11-NO
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: Male thread
Pressure range: 0.1-1.0 MPA
Work temperature range: -5-60 degree
Connection: 1/8"
Current: 0.5A
Maximum power: 24VA, 100VA
Maximum working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54
Package Included:
1 x Diaphragm type pressure switch
Note:
Adjust the pressure of the size, please screw the two
terminals in the middle of the Hex.
Package include:
1 x Pressure Switch
Note:
New-style and old-style are shipped randomly
Features
1、Made of high quality material, durable and long service life
2、Adopting adjustable pressure working form, the pressure range is 0.1‑1.0 MPA, the operation is simple and convenient
3、The male thread is clear, and the connection is stable and not easy to slip off
4、Professional design and reasonable structure, easy to replace and install
5、Normally open pneumatic switch, long service life and not easy to damage
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
