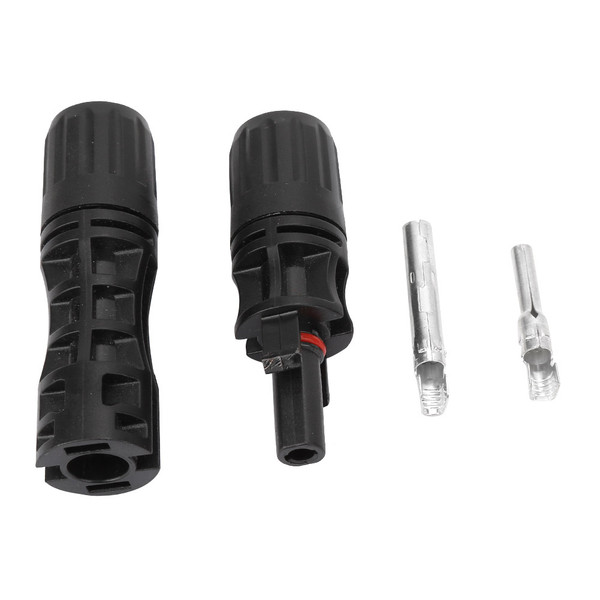

1 Pair Waterproof 1500V Solar Deck Panel Junction Connector Male and Female Cable Connector

Features:
2. Flame retardant PPO material, tinned copper core, which is flame retardant, anti-oxidation, corrosion resistant.
3. Long service life, can be inserted and removed multiple times.
4. Innovative sealing technology, which is IP67 waterproof and dust-proof.
5. The connection is connected by pressing, and the male and female heads are provided with a self-locking mechanism to open and close freely.
6. Excellent waterproof, UV-resistance and other properties, suitable for long-term outdoor use.
Specifications:
Material: Plastic
Color: Black
Rated Current: 30A (2.5-6mm2)
Overvoltage Category/ Contamination Index: CATIII/2
Contact Resistance: 0.5mΩ
Contact Material: Copper,Tin Plated
Insulation Material: PPO
Protection Level: IP2*/IP67
Flame Class: UL94-V0
Protection Class: II
Suitable Class: OD4.5-7.0 (2.5-4.0mm2)
Insertion Force/ Withdrawal Force:≤50N/≥50N
Connecting System: Crimp Connection
Temperature Range: -40 - +125℃
Packing List:
1 * Male Solar Panel Cable Connector
1 * Female Solar Panel Cable Connector

Features

1、Consists of one male and one female connector with strong large current and high voltage bearing capacity.
2、Flame retardant PPO material, tinned copper core, which is flame retardant, anti-oxidation, corrosion resistant.
3、Long service life, can be inserted and removed multiple times.
4、Innovative sealing technology, which is IP67 waterproof and dust-proof.
5、The connection is connected by pressing, and the male and female heads are provided with a self-locking mechanism to open and close freely.
