Product Overview

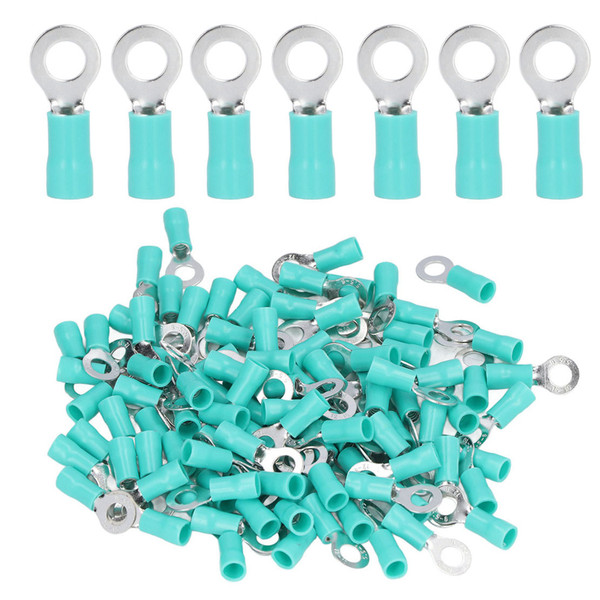

Item Type: Insulated Wire Terminal
Model: RV5.5-6
Material: Copper + PVC
Color: Green
Applicable Wire: 4-6mm²(AWG 12-10)
Maximum Current: 48A
Applicable Crimping Tool: HX-30J AN-30J AP-30J FSB-054YJ
Bolt Diameter: Approx. 6mm / 0.24in
American Bolt: 1/4in
d2: 6.5mm / 0.26in
W: 12.0mm / 0.47in
F: 10.5mm / 0.41in
L: 29.5mm / 1.16in
H: 13.0mm / 0.51in
d1: 3.5mm / 0.14in
D: 6.5mm / 0.26in
T: 1.0mm / 0.04in
Model: RV5.5-6
Material: Copper + PVC
Color: Green
Applicable Wire: 4-6mm²(AWG 12-10)
Maximum Current: 48A
Applicable Crimping Tool: HX-30J AN-30J AP-30J FSB-054YJ
Bolt Diameter: Approx. 6mm / 0.24in
American Bolt: 1/4in
d2: 6.5mm / 0.26in
W: 12.0mm / 0.47in
F: 10.5mm / 0.41in
L: 29.5mm / 1.16in
H: 13.0mm / 0.51in
d1: 3.5mm / 0.14in
D: 6.5mm / 0.26in
T: 1.0mm / 0.04in
Features
1、[100PCS IN 1 SET] Including 100pcs insulated wire terminals, with ring design, easy to connect and not easy to leak.
2、[EASY CRIMPING] Durable insulated crimping terminal, very suitable for solid core wire or stranded wire that is difficult to crimp.
3、[COPPER AND PVC] These terminals are made of copper and PVC materials, which have good insulation and conductivity.
4、[APPLICABLE WIRES] The maximum current is 48A, suitable for crimping 4‑6mm² (AWG 12‑10) electrical wires.
5、[WIDE APPLICATIONS] Widely used in electronics, machinery, transportation, lighting, home appliances and other equipment.
Package List
100 x Terminals
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.78 Inch |
| Length | 3.9 Inch |
