1080P / 5MP AHD CCTV Tester 4-in-1 for AHD TVI CVI CVBS Analog Camera Security AC

Features:
100% brand new and high quality.
Terminal and DC power supply, compact size, easy to carry and operate.
Through DC power out enables user to inspect; correct camera or confirm installation. It is convenient for communication and discussion with clients during installation process.
Low power consumption, automatic power off, real-time display of battery level.
With ADSL detection function.
Specification:
Material: Hardware & Plastic
Weight: 512g/18.1oz
Model: JSK-4300ACT
New version 4.3" HD camera tester CCTV camera tester monitor 12V 1A output.
Support 5MP/4MP AHD Camera Testing.
Support TVI Cameras: 5MP, 4MP, 3MP, 1080P, 720P;
Support AHD Cameras: 5MP, 4MP, 3MP, 1080P , 720P;
Support CVI Cameras: 4MP, 3M,  1080P, 1.3MP, 720P
Analog cameras=video testing updated model.
1. video tester
Video System: NTSC/PAL Automatically recognize
Video level: 1VPP
Display screen: 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
Screen adjustment: Video display brightness, contrast, color saturation adjustable,
LCD backlight brightness adjustable
Video input / output: 1 channel BNC Video IN
2. HD AHD, TVI Test
SD signal Format: NTSC,PAL
Video signal: HD AHD,TVI,CVI,CVBS
Resolution: D1, 720P, 960P, 1080P, 3MP, 4MP, 5MP
MAX Support 5MP, 4MP AHD 20FPS; 5MP 4MP TVI 20FPS
Signal Level: 1Vpp
3. 12V power output
Power output:
Temporary power output 12V 1A D
 USBX1  5V1A output
4. Audio test
Audio test: Input audio signal, and played on the internal speaker
5. Power supply
External power supply: DC 5V（2A）
Battery-powered: Built-in 3.7V Li-polymer battery. Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, real-time display of battery level.
6. System settings.
Language settings: English
Auto power off: Disable / 5-60 minutes
7.Cable test
Test any two or more wire cable display connect sequence and remote number.
LED Light: 1*35lm LED light
Working environment and Specifications: -20℃---+70℃/30%-90%R

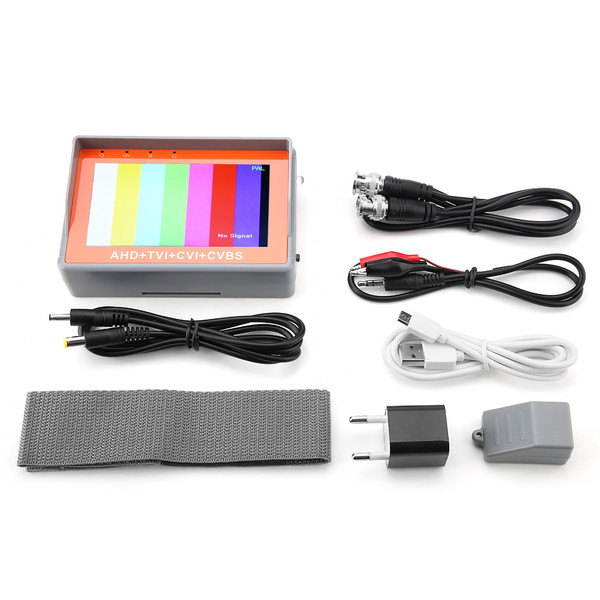

Package List:
1 x HD AHD + TVI + CVBS CCTV Tester
1 x AC / DC Adapter
1 x Power Output Cable
1 x Transformer
1 x A / V Cable
1 x Video Cable
1 x Data Line
1 x Wrist Strap

Features

1、100% brand new and high quality.
2、Terminal and DC power supply, compact size, easy to carry and operate.
3、Through DC power out enables user to inspect; correct camera or confirm installation. It is convenient for communication and discussion with clients during installation process.
4、Low power consumption, automatic power off, real-time display of battery level.
5、With ADSL detection function.
