1080P HD 12MP Industrial Microscope Camera 120X CMount Lens 144LED Light AC100240V

Item Type: Microscope Camera
Material: Aluminum Alloy
Microscopic Camera Parameters:
Image Sensor: 4K sensor 1/2.33 inch.
Effective Pixels: For SONY 12MP CMOS 1/2.33 IMX 4K sensor
Resolution: 4K/2K/1080P(HD Multimedia Interface) 1080P(USB)
Sensor Size: 1/2.33in
Pixel Size: 1.55x1.55μm.
Image Resolution: 4032x3024 (12MP) (16:9)
HD Multimedia Interface Resolution: 4032 x 3024 60FPS
Frame Rate: 60 at FPS (4K)
Image Format: JPEG
Wavelength [nm]: 400nm~700nm
Frame Rate: 3840x2160 at 60FPS(4K); 1080P 120 at FPS; 720P 240 at FPS
Lens Type: C/CS
Timed Photo/Record: Support timed photo/record
Computer Support: Fit for Windows / Mac / Linux system computer software measurement function
Image Measurement: Support for HAYEAR measurement
Output Interface: HD Multimedia Interface/USB standard USB2.0 interface (Type B)
Image Zoom: 7 times magnification
Horizontal and Vertical Lines.
Support Multi-Color, 5 horizontal/vertical lines, movable.
Different colors, 5 horizontal lines, 5 vertical lines, any position.
Encoding: H.264 /H.265 (high quality)
Video Format: MP4
120X C-Mount Lens Parameters
Working distance: 50mm-350mm
Field of View: 3.1mm-66mm
Zoom C-Mount Lens
Scaling Ratio: 5:1
The Magnification is: 0.11 times -2 times
Size: 100mm (length) x 28mm (inner diameter)
Ring Adapter: 35mm (default)
Lamp Holder Parameters:
144 Bright White LED bulbs
Life: 100,000 hours
Strong and Concentrated Shadowless Lighting
Brightness: 0-100% adjustable, high brightness, variable strong control
Suitable for lens diameter: 30mm-160mm
Remote Control Battery Type: 1 x CR2025 (Not Included)
Uses: Widely used in microelectronics, molds, precise machinery, jewelry, watches, accessories, fingerprint identification, ticket verification, printing, mobile phone repair, archaeology, biological, school teaching and other fields. Especially suitable for observing the surface microstructure of large objects

Features

1、Widely used in microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields.
2、Industrial digital microscope camera is especially suitable for observing the surface microstructure of large objects.
3、High safety factor, strict quality control and quality assurance, can be used with confidence.
4、Rugged and durable, using high‑quality aluminum alloy materials, long service life.
5、High‑definition camera, using 4K sensor 1/2.33 inches, clear photography.

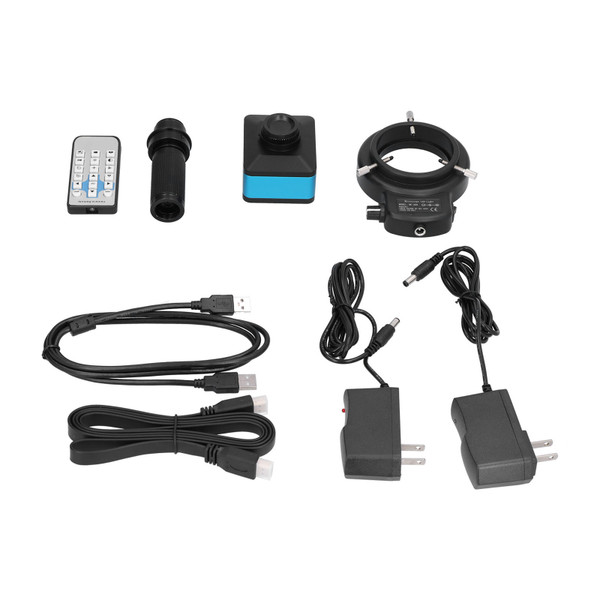

Package List

1 x 4K HD Multimedia Interfacemicro Camera

1 x Manual

1 x HD Multimedia Interface Cable

1 x Driver CD

1 x USB Cable

1 x 144 LED Ring Light

1 x Infrared Remote Control(Battery not Included)

1 x 120x C-Mount Lens

2 x Power Adapter
