Product Overview
Features:
Specifications:

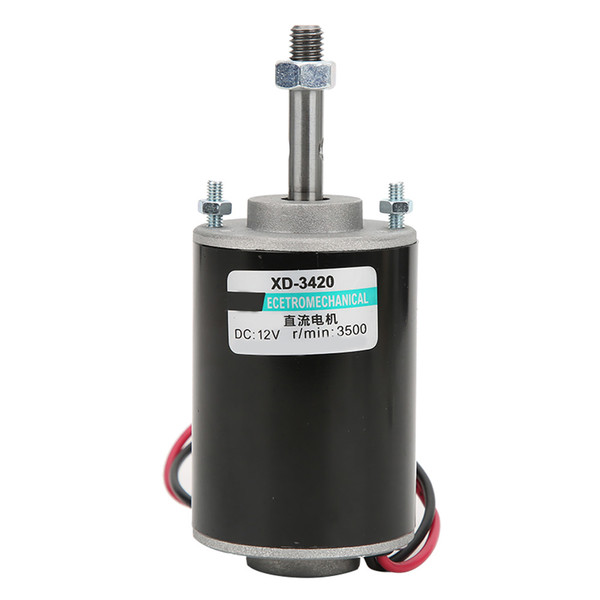

Model: XD-3420
Voltage(Optional): DC12V/24V
Power: 30W
Speed: 3500RPM(12V), 7000RPM(24V)
The product has no function of automatic forward and reverse rotation and speed regulation, and the motor wire needs to be connected in reverse to realize reverse rotation; The governor with positive and reverse switch is externally connected to realize the speed regulation function.
Package Included:
1 x Permanent Magnet DC Motor
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Specifications:
Model: XD-3420
Voltage(Optional): DC12V/24V
Power: 30W
Speed: 3500RPM(12V), 7000RPM(24V)
The product has no function of automatic forward and reverse rotation and speed regulation, and the motor wire needs to be connected in reverse to realize reverse rotation; The governor with positive and reverse switch is externally connected to realize the speed regulation function.
Package Included:
1 x Permanent Magnet DC Motor
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、Can be applied in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment
2、This motor features high speed 3500/7000rpm and large torsion.
3、The stator windings of the motor are copper wire, CW/CCW control
4、This permanent magnet DC motor is ideal for DIY generator
5、Need for external direct current governor, it can achieve speed adjustment function.
Package Weight and Dimension
| Weight | 1.19 lb |
| Width | 1.95 Inch |
| Height | 1.95 Inch |
| Length | 4.68 Inch |
