Product Overview
Description:

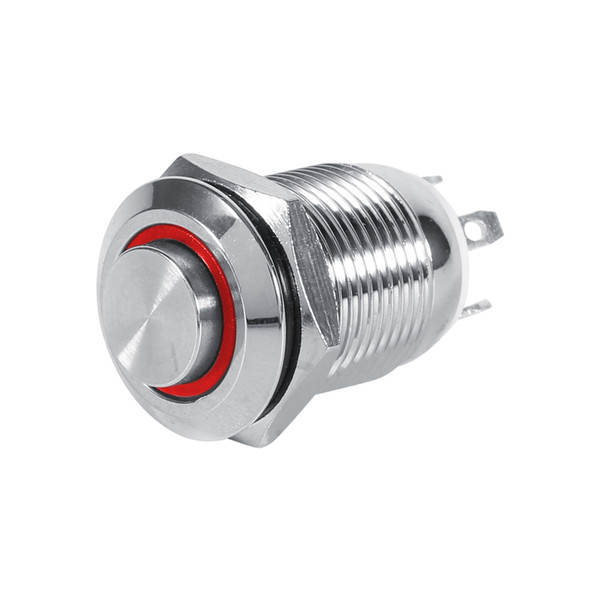

This is a LED power push button switch. It is a durable switch made of industrial strength copper and nickel components, and its metal button head can withstand longstanding press, pretty durable in using. It adopts rubber ring and hexagonal nut fixed, making it anti dust and waterproof, which is very great for outdoor use. The
light glow of the circle LED will help you navigated in the dark
and give a sophisticated look. Wish you a cheerful operation with our
product.
Features:
1. Made of brass nickel plated material, strong and durable.
2. High-grade appearance and nice touch feeling.
3. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.
4. Copper plating silver pin terminals for good conductive properties.
5. Momentary type, push it-on, release it-off.
6. Metal button head durable for longstanding press.
Specifications:
Material: Brass nickel plated material
Color: Silver
Switch Rating: 2A
Head Shape: High Flush
Switch Contact: 1NO
Green, blue, white LED - 3V
IP Rating: IP65, IK08
Screw Thread Width: 12mm / 0.47"
Dimension: 0.7 x 2.2cm / 0.28" x 0.87"
Package Weight: Approx. 9g
Operation Type: Momentary type (push it-on, release it-off)
Package Included:
1 x Push Button Switch
Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
2.
Monitors are not calibrated same, item color displayed in photos may be
showing slightly different from the real object. Please take the real
one as standard.
This is a LED power push button switch. It is a durable switch made of industrial strength copper and nickel components, and its metal button head can withstand longstanding press, pretty durable in using. It adopts rubber ring and hexagonal nut fixed, making it anti dust and waterproof, which is very great for outdoor use. The
light glow of the circle LED will help you navigated in the dark
and give a sophisticated look. Wish you a cheerful operation with our
product.
Features:
1. Made of brass nickel plated material, strong and durable.
2. High-grade appearance and nice touch feeling.
3. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.
4. Copper plating silver pin terminals for good conductive properties.
5. Momentary type, push it-on, release it-off.
6. Metal button head durable for longstanding press.
Specifications:
Material: Brass nickel plated material
Color: Silver
Switch Rating: 2A
Head Shape: High Flush
Switch Contact: 1NO
Green, blue, white LED - 3V
IP Rating: IP65, IK08
Screw Thread Width: 12mm / 0.47"
Dimension: 0.7 x 2.2cm / 0.28" x 0.87"
Package Weight: Approx. 9g
Operation Type: Momentary type (push it-on, release it-off)
Package Included:
1 x Push Button Switch
Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
2.
Monitors are not calibrated same, item color displayed in photos may be
showing slightly different from the real object. Please take the real
one as standard.
Features
1、Made of brass nickel plated material, strong and durable
2、Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof
3、Copper plating silver pin terminals for good conductive properties
4、Momentary type, push it-on, release it-off
5、Metal button head durable for longstanding press
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 0.78 Inch |
| Height | 0.78 Inch |
| Length | 1.17 Inch |
