Product Overview

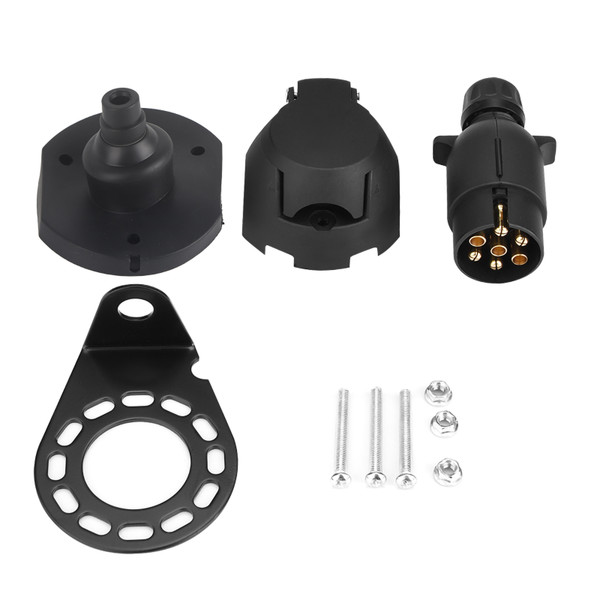

This Europe Style 7-Pin Trailer Plug used to establish a secure connection between your trailer and tow vehicle. It has round brass pins to ensure minimum voltage drop and pull grips for easy insertion and removal.
Features:
Ideal for new towbars or for replacing damaged plugs on existing cars.
European standard trailer connector, connect vehicle and additional trailer, transfer electronic signal lights from vehicle to trailer.
High quality brass pins with plastic housing, durable in use.
Provides connections for indicators, side lights, brake lights and fog lamp.
Specification:
Material: Plastic + Brass
Color: Black
Pin: 7
Type: 12N
Package Weight: approx. 280g/9.9oz
Application: can be used for trailers, caravans, bicycles and so on (for European Vehicles only)
7 Pin Lighting Connections:
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
Package list:
1 * 7-pin Socket
1 * Mounting Bracket
1 * Gasket
3 * Screws
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features:
Ideal for new towbars or for replacing damaged plugs on existing cars.
European standard trailer connector, connect vehicle and additional trailer, transfer electronic signal lights from vehicle to trailer.
High quality brass pins with plastic housing, durable in use.
Provides connections for indicators, side lights, brake lights and fog lamp.
Specification:
Material: Plastic + Brass
Color: Black
Pin: 7
Type: 12N
Package Weight: approx. 280g/9.9oz
Application: can be used for trailers, caravans, bicycles and so on (for European Vehicles only)
7 Pin Lighting Connections:
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
Package list:
1 * 7-pin Socket
1 * Mounting Bracket
1 * Gasket
3 * Screws
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、This is a plastic 7 pin trailer plug(12N )to power trailer or caravan lights.
2、Ideal for new towbars or for replacing damaged plugs on existing cars.
3、European standard trailer connector, connect vehicle and additional trailer, transfer electronic signal lights from vehicle to trailer.
4、High quality brass pins with plastic housing, durable in use.
5、Simple plug-and-play eliminates the need for cutting or splicing.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 3.12 Inch |
| Length | 5.46 Inch |
