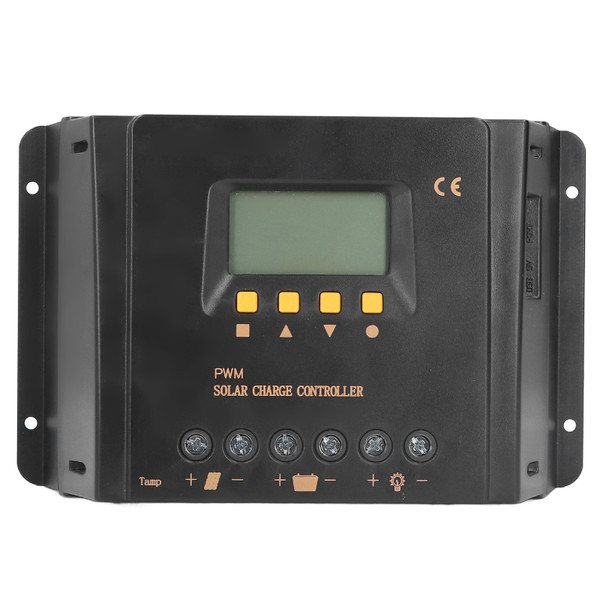

12V 24V 30A Solar Panel Charge Controller LCD Display PWM Photovoltaic Charging Controller

Item Type: Solar Charge Controller
Product Material: Alloy Steel
Product Size: Approx. 207 x 134 x 70mm / 8.1 x 5.3 x 2.8in
Model: JN-R 12V/24V 30A
Balance Charge: 14.5V 29.0V 58.0V
Overload Protection: 1.2 times 3s recovery, 1.5 times 10s recovery, more than 2 times need to be repaired manually
Maximum Wire Diameter: Approx. 4mm / 0.16in
Static Loss: 0.3W
Communication: RJ45
USB Output: 5V 0.5A
LCD Temperature Range: -20-75℃
Working Environment Temperature: -20-50℃
Storage Temperature: -30-70℃
Waterproof Grade: IP30

Features

1、[SAFE OPERATION] Suitable for solar off grid systems, automatic control of charging and discharging, comprehensive self test and electronic protection functions to avoid installation errors and system failures.
2、[LCD DISPLAY] Adopt LCD display and button man machine interface, automatic identification of day and night, user friendly design of the browsing interface to facilitate various operations.
3、[MULTIPLE CONTROL] Complete on site control, parameter setting and modification, various load control methods and intelligent memory function enhance the flexibility of load output.
4、[AUTO ADJUSTMENT] Using temperature compensation charging control algorithm, the system automatically adjusts the charging and discharging parameters to improve the service life of the battery.
5、[OPERATING VOLTAGE] High accuracy A/D sampling to ensure accuracy, automatic identification of 12V 24V system voltage or 48V battery working voltage, and efficient series PWM charging method.
6、[CIRCUIT PROTECTION] The controller has over temperature, over discharge, overload, short circuit automatic protection functions, photovoltaic array and battery reverse connection automatic protection function.
7、[5V DC OUTPUT] Can supply power to mobile phones or digital products, and the standard RJ45 interface can be used to connect communication peripherals such as liquid crystal display units or PC monitoring software.

Package List

1 x Solar Charge Controller
