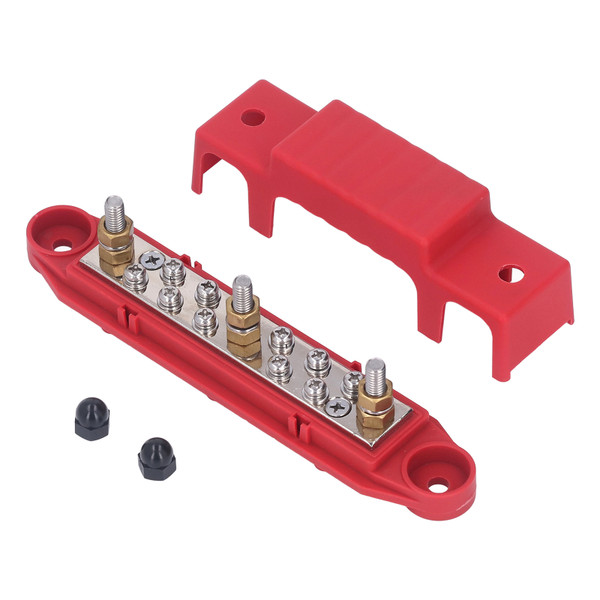

Product Overview
Material: ABS, zinc alloy, brass, nylon, stainless steel, nickel
Maximum Voltage: 48V DC
Maximum Continuous Current: 150ADC
Maximum Intermittent Current: 20 A per connection (less than 1 minute)
Function: Bring the wiring harness together to reasonably store the wiring inside the vehicle and boat
Application: Suitable for power systems such as automobiles, RVs, ships, yachts, etc.
Features
1、Function: The busbar brings the wiring harness together, organizes the wires inside the boat, and provides a neat and clean installation for your boat, car or caravan.
2、10 Terminal Bus Bar: Each battery terminal distribution base includes 10 stainless steel M8 terminal screws, 3 1/4in studs, 3 nickel plated brass screws.
3、Important Parameters: Maximum voltage 48VDC. Maximum continuous current 150ADC. Maximum intermittent current 20 A per connection (less than 1 minute).
4、Long Durability: Made of ABS plastic for excellent strength and durability even in the harshest environments. Nylon nut covers are attached to the two external studs to prevent accidental shorting.
5、Premium Material: The busbars are made of zinc alloy and brass with good electrical conductivity. Each busbar includes a cover to protect the connections from damage. The insulating nylon base is flame retardant.
Package List
1 x Power Distribution Block
1 x Cover
2 x Nut Cap
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.95 Inch |
| Length | 7.41 Inch |
