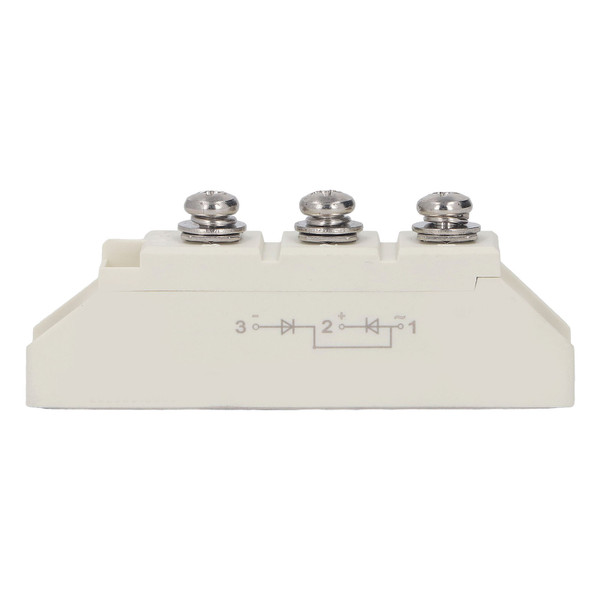

Product Overview
Material: ABS
Maximum Current: 100A
Peaking Voltage: 1600V
Terminal: 3
On State Current Maximum(It(RMS)): 1.5A
Use: Power supply, AC switch, welding equipment, motor control, dimming, inverter contactless switch, motor soft start, battery charge and discharge, static reactive power compensation
Features
1、Current and Peaking Voltage: Our semiconductor diode bridge rectifier is with maximum current of 100A and peaking voltage of 1600V.
2、Power Cycling: The diode bridge rectifier module owns a welded structure, excellent power cycle and temperature characteristics. Can be used for PWM inverter current input, battery charging, etc.
3、Glass Passivation: The diode bridge rectifier module has high output DC current and high withstand voltage power with unique glass passivation technology.
4、Reliable and Isolated Mounting Base: This semiconductor diode bridge rectifier module adopts isolated mounting base and with high reliability.
5、Use: This diode bridge rectifier module is also for welding equipment, motor control, dimming, inverter contactless switch, motor soft start, battery charge and discharge, static reactive power compensation.
Package List
1 x Bridge Rectifier Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.56 Inch |
| Height | 0.78 Inch |
| Length | 3.9 Inch |
