2.4GHz Wireless Audio and Video Sender Audio Video Transmitter and Receiver for DVD DVR IPTV 100‑240VEU Plug

Item Item Type: Audio And Video Sender
ABS+Electronic Components
Features:
Use 2.4GHz ISM Frequency Band, Support 8 Groups Of 2.4GHz Channel Selection;
Unimpeded Transmission Distance Up To 400 Meters. Support Transmission Through Walls;
Digital Screen Displays Channels, And Channel Selection Is Convenient And Intuitive;
Exclusive Wireless Anti Interference Patented Technology, Effectively Blocking Wireless Signal Interference Such As Walkie Talkies And Wireless Routers;
Support PAL/NTSC Format Audio And Video Transmission;
The Transmitter Supports 1 RCA Audio And Video Signal Input, And The Receiver Supports 1 RCA Audio And Video Signal Output;
When The Same Channel, The Transmitter And Receiver Can Be Used One To One Or One Transmitter To Multiple Receivers At The Same Time;
Support 433MHz Superheterodyne Infrared Remote Control Signal Wireless Return, Compatible With 38KHz Infrared Carrier Remote Control Signal;
The Transmitter Has Its Own Infrared Signal Transmission Or Uses An Infrared Signal Extension Cable;
Aluminum Alloy Shell, Super Heat Dissipation Effect, Effectively Guarantee The Long Working Hours And Life Of The Equipment;
Transmission Frequency: 2.4GHz
Sensitivity: -90dBm
Transmit Power: 50mW
Channel Switch: 8 Groups
Transmission Distance: Approx. 400m/ 1312ft
Input And Output Ports: RCA
1 Channel Video Input And Output: 1Vp-P（PAL/NTSC)
1 Channel Audio Input/Output: 1Vp-P（Stereo)
Superheterodyne Reception: Transmitter: -110dBm; Receiver: 433.92MHz
Infrared Carrier: 38KHz
Infrared Emission Distance: Transmitting End: ≥5m / 16.4ft; Receiving End: ≥10m / 32.8ft
Shell: Aluminum Alloy
Power Input: 5V 1000mA
Size: Approx. 100x1000x25mm / 3.9x39.4x1in
Operating Temperature: 32~104℉/0~40℃
Storage Temperature: -4~140℉/20~60℃
Humidity: 20~90RH

Features

1、Super Transmission: Plug and play, strong long transmission distance ≤400m / 1330ft. Suitable for 1‑2 floors of walls.
2、The Image Is Stable and Clear: The image received via radio is vivid and stable, with bright colors and clear sound.
3、Support 8 Optional 2.4GHz Channels: To avoid wireless signal interference from wireless devices
4、Infrared Remote Control Controls The Source Device From The Display Side: Works with the digital TV conversion box to send signals to TVs in other rooms.
5、Support PALNTSC Protocol: Make the transmission smooth, provide you with perfect vivid images and clear sound, without any noise.

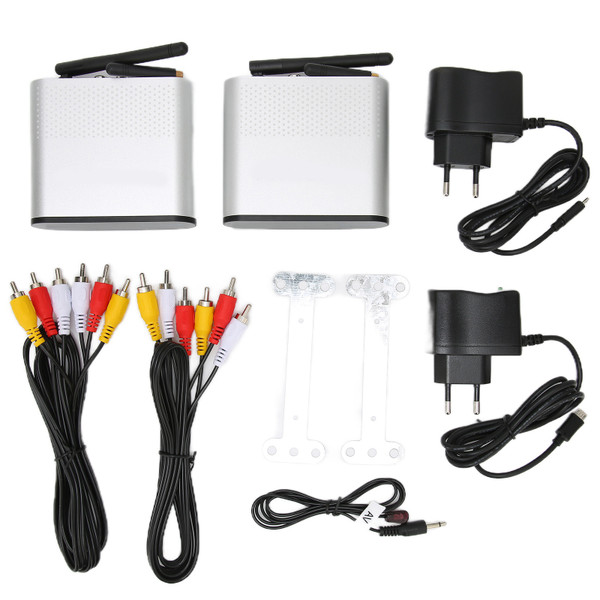

Package List

1 x Transmitter

1 x Receiver

2 x Power Adapter

2 x Audio and Video Cable

2 x Movable Stand

1 x Manual

1 x Infrared Extension Antenna

6 x Screw
