2 Phase Digital Stepper Motor Driver Controller Low Noise 57 Stepping Motor 20‑50VDC Input

Item Type: Stepper Motor Set
Drive Parameters:
Output Current (peak Value): 2.8-7A
Control Signal Current: 6-16mA, Typical: 10mA
Step Pulse Frequency: 0-300KHz
Step Pulse Width: Minimum 2us
Direction Signal Width: Minimum 100us
Undervoltage Protection Point: Typical 7.5VDC
Overvoltage Protection Point: Typical 100VDC
Driver Initialization Time: Minimum 2S
Insulation Resistance: Minimum 500ΜΩ
Motor Parameters:

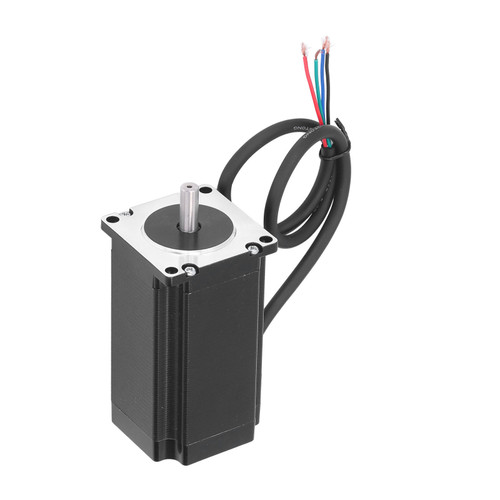

Motor Model: NEMA23-76-0821D
Rated Current: 4A/Phase
Holding Torsion: 2N.m
Resistance: 0.4Ω/Phase+10%
Weight: Approx. 1kg / 35.3oz
Body Length: Approx. 76mm / 3in
Adaptive Driver: 2DM542

Features

1、Motor Features: Using PI control algorithm, the stepping motor has the characteristics of low noise, low vibration, low heat and high efficiency.
2、Subdivision and Current: There are 16 kinds of subdivision and 16 kinds of current, the operation current and subdivision can be selected through the dial switch.
3、Optical Isolation Signal: Adopts optical isolation differential signal input, with maximum input pulse frequency of 300KHz and quick response speed.
4、Circuit Protection: With the functions of overvoltage and undervoltage alarm, phase current overcurrent protection, motor phase open circuit detection, etc.
5、Constant Current Input: Pulse, direction and enable terminals have constant current input function, and can be directly connected with input signals.
6、Simple Motor Control: Built in oscillator, dial code or switching value signal controls the motor start and stop, the 16 speed can be switched automatically.

Package List

1 x Stepper Motor Driver

1 x Stepper Motor
