Product Overview

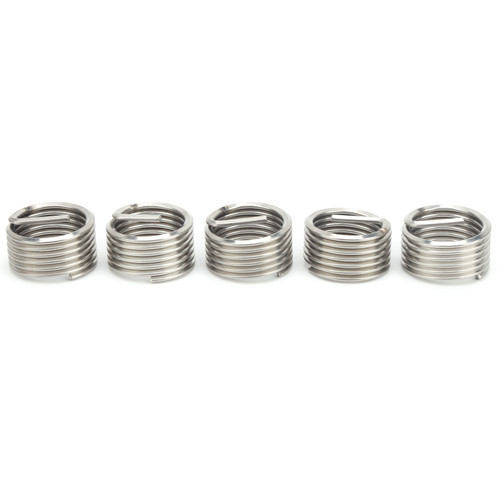

Item Type: Wire Thread Insert
Material: SUS304
Model: M14 x 1.5 x 1.5D
Thread Specification: M14 x 1.5
Length After Installation: Approx. 21mm / 0.8in
Number of Turns Before Installation: Approx. 11.5
Outside Diameter Before Installation: Approx. 16.7-17.2mm / 0.66-0.68in
Drill Bit Diameter: Approx. 14.4mm / 0.6in
Wire Thread Insert Model Description: For Example: M3 x 0.5 x 1.5D, which means that after the screw is set, the female thread is M3, the pitch is 0.5, the length is 1.5D (Length refers to the length of 1.5 times the diameter, that is, 1.5 x 3=4.5mm), the length here refers to Is the length after installation.
Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of female thread fasteners made of high-strength, high-accuracy diamond-shaped cross-section steel wire; in aluminum alloy, zinc The application of low-strength engineering materials such as alloys, copper, plastics can significantly improve thread strength and wear resistance.
Material: SUS304
Model: M14 x 1.5 x 1.5D
Thread Specification: M14 x 1.5
Length After Installation: Approx. 21mm / 0.8in
Number of Turns Before Installation: Approx. 11.5
Outside Diameter Before Installation: Approx. 16.7-17.2mm / 0.66-0.68in
Drill Bit Diameter: Approx. 14.4mm / 0.6in
Wire Thread Insert Model Description: For Example: M3 x 0.5 x 1.5D, which means that after the screw is set, the female thread is M3, the pitch is 0.5, the length is 1.5D (Length refers to the length of 1.5 times the diameter, that is, 1.5 x 3=4.5mm), the length here refers to Is the length after installation.
Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of female thread fasteners made of high-strength, high-accuracy diamond-shaped cross-section steel wire; in aluminum alloy, zinc The application of low-strength engineering materials such as alloys, copper, plastics can significantly improve thread strength and wear resistance.
Features
1、The thread socket is female thread fastener with certain elasticity, which can enhance the connection strength and fatigue strength of the thread.
2、304 stainless steel has good corrosion resistance and is not easy to break when repairing thread holes.
3、When thread processing error occurs or female thread hole is damaged, the wire thread insert is a good maintenance tool.
4、Wire thread insert can be used to convert between metric and imperial threaded holes, which is convenient and fast.
5、The wire thread insert size is standard, the thread is clear, and it will be more accurate for thread sliding tooth restoration.
Package List
20 x Wire Thread Insert
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 2.34 Inch |
| Length | 4.68 Inch |
