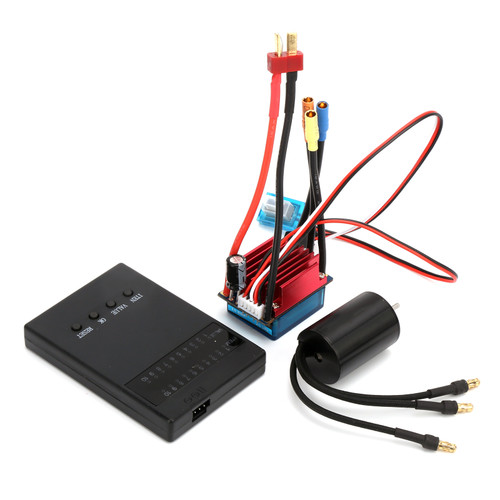

Product Overview
Material: Aluminum Alloy, Plastic
Motor Parameters:
Shell Material: Aluminum Alloy
Color: Dark Blue
Motor Size: Approx. 24 x 34.5mm / 0.94 x 1.36in
Shaft Diameter: Approx. 2mm/0.08in
Shaft Length: Approx. 12mm/0.47in
KV Value: 4500KV
Watt: 300
Maximum Speed: 60000
Maximum Amperage: 22A
Number of Rotor Poles: 4
Connector: 3.5mm/0.1in Banana Head Male
ESC Parameters:
Shell Material: Plastic, Aluminum Alloy
Color: Dark Blue
ESC Size: Approx. 41 x 28 x 17.5mm / 1.61 x 1.1 x 0.69in (Without Wire)
Continuous Current: 25A
Peak Current: 100A (10s)
Applicable Battery: 2S Lipo
Connector: 3.5mm/0.1in Banana Head Female
Applicable: for Traxxas, for HSP, for Wltoys 1/16 1/18 RC Car, etc
Features
1、[High Torsion] RC brushless motor is designed with 4 pole 12 slot high torsion rotor, which has strong torsion and stable output power.
2、[Efficient] RC motor has CNC machined 6061 T6 aluminum front and rear cover. High purity and high temperature resistant copper coil provides high efficiency.
3、[Durable] High toughness stainless steel output shaft and high accuracy premium bearings create the super durability of RC car brushless motor.
4、[High Performance] RC brushless ESC adopts premium components to ensure efficient operation. Premium starting, acceleration and linearity functions.
5、[Multi Safety Protection] RC 4500KV motor and 25A ESC, with low voltage cut off protection, overheating protection, throttling signal loss protection.
Package List
1 x Motor
1 x ESC
1 x Instruction Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 5.07 Inch |
| Height | 1.56 Inch |
| Length | 6.63 Inch |
