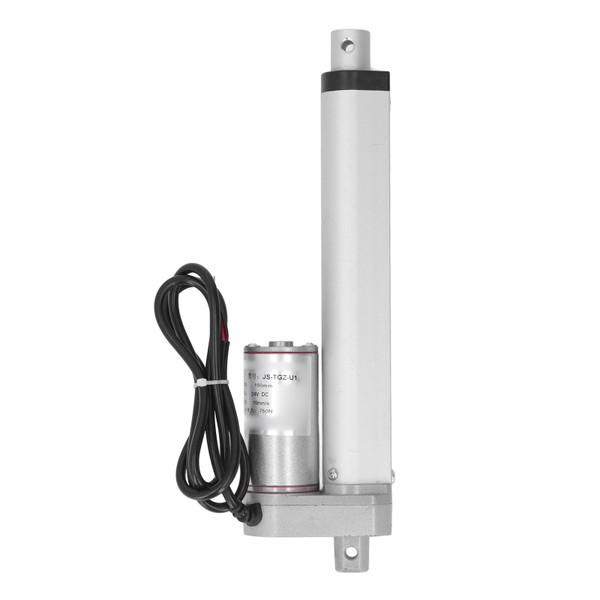

Product Overview
Material: Aluminum Alloy
Stroke: Approx. 150mm / 6in
Voltage: 24VDC
Actuator Speed: 10mm/s
Maximum Thrust: 750N
Rated Power: 20W-30W
Ambient Temperature: 40℃-65℃
Noise Level: <65dB
Limit Switch: Built In
Protection Grade: IP65
Use: Electric bed, electric sofa, electric booth lift bar, industrial electric lift system, camera stand, wedding system.
Features
1、ELECTRIC DRIVE DEVICE: Electric linear actuator is an electric drive device that transforms the rotational motion of the motor into the linear reciprocating motion of the actuator.
2、WORKING PRINCIPLE: After the motor is decelerated by gears, our linear actuator drives a pair of screw nuts to turn the rotational motion of the motor into linear motion, and uses the forward and reverse rotation of the motor to complete the actuator action. By changing the length of the lever arm, the stroke can be increased or enlarged.
3、POWER AND MAXIMUM THRUST AND 24VDC: The electric linear actuator has the 150mm stroke, 750N maximum thrust, 24VDC voltage and 20‑30W rated power.
4、STURDY AND SIMPLE INSTALLATION: Linear motor electric actuator is sturdy and can withstand harsh working environment, simple for installation and friendly to novices.
5、SUITABLE APPLICATION: Electric linear actuator can be used in electric bed, electric sofa, electric booth lifting rod, industrial electric lifting system, camera frame, wedding system, also can be used in smart home applications.
Package List
1 x Linear Actuator
Package Weight and Dimension
| Weight | 2.73 lb |
| Width | 3.12 Inch |
| Height | 1.95 Inch |
| Length | 10.92 Inch |
