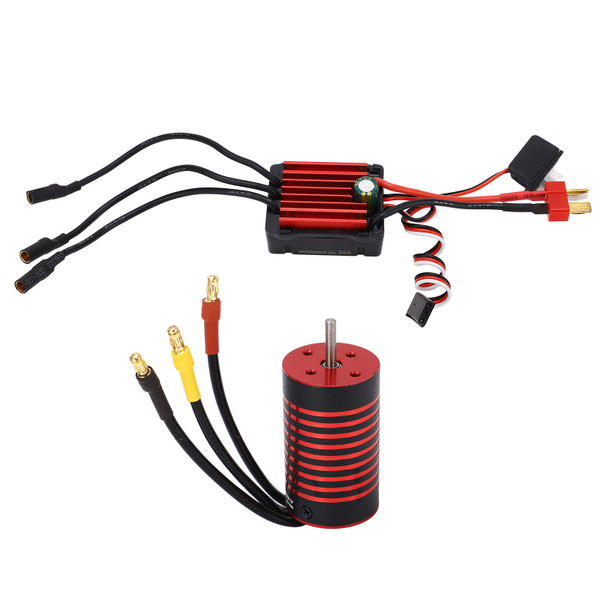

2845 Brushless Motor 35A ESC Kit 4P 12 Slot Large Torsion Copper Coil Motor ESC Set for 1/12 1/14RC 3700KV

Item Type: Brushless Motor ESC Kit
Motor Parameters:
Shell Material: Aluminum Alloy
Color: Black, red
Motor Size: Approx. 28 x 47mm / 1.1 x 1.85in (excluding cable and shaft)
Watt: 800
Maximum Speed: 50000
Maximum Amperage: 57A
Rotor Pole: 4
Shaft Diameter: Approx. 3.175mm / 0.13in
Shaft Length: Approx. 15mm / 0.59in
Connector: Approx. 3.5mm / 0.14in gold head (male)
ESC Parameters:
Shell Material: Aluminum Alloy, Plastic
Color: Red, black
Product Size: Approx. 40 x 32 x 15mm / 1.57 x 1.26 x 0.59in (excluding cable)
Continuous Current: 35A
Peak Current: 120A
BCE Output: 5V 2A (analog mode)
Applicable Car: For HSP, for Traxxas, for HPI and other brands 1/12 1/14 remote control vehicles

Features

1、APPLICABLE MODELS: The motor and ESC kit is suitable for 1/12 1/14 RC cars, check the model for better fit!
2、MOTOR FEATURES: 4 pole 12slot large torsion rotor design, with strong torsion and stable output power.
3、ALUMINUM ALLOY SHELL: The shell of the motor is made of premium aluminum alloy material, high temperature resistant and efficient!
4、STAINLESS STEEL SHAFT: The shaft of the motor is made of stainless steel material, making the motor strong and durable, suitable for long term use.
5、MULTI PROTECTION: The motor is designed with multi protection function, including low voltage cutoff protection, overheat protection, throttle signal loss protection.

Package List

1 x Motor

1 x ESC

1 x Manual
