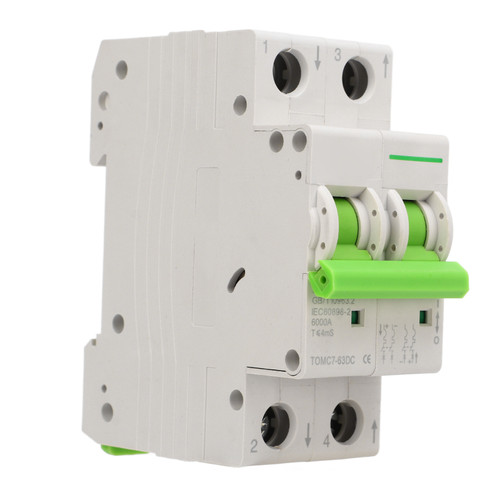

2P Photovoltaic System DC Miniature Circuit Breaker Solar IP65 Waterproof PV Disconnect Switch DC1000V 25A

Item Type: Photovoltaic System DC Miniature Circuit Breaker
Model: DZ47s 63Z
Material: Pa66
Rated Current: 25A
Rated Voltage: DC1000V
Icu: 6000A

Features

1、Pa66 Material: 2P circuit breaker disconnect switch is made of Pa66 material with excellent workmanship, rated current is 25A, rated voltage is DC1000V, Icu is 6000A.
2、Easy to install: The adaptor cable for small circuit breaker is 6 to 8.7mm(0.24 to 0.34in), and the diameter cable is suitable for 7 to 5AWG cable.
3、Transparent Cover: 2P mini circuit breaker kit has a transparent cover plate, which also makes it easy to check the status of the breaker and allows for more visual observation and maintenance.
4、Wide Application: Our 2P mini circuit breaker is suitable for PV solar panel grid connected system and solar off grid system solar power system, PV array, RV solar, etc.
5、Safe and Sturdy: The overall safety and sturdiness of the 1000VDC disconnect switch ensures stable operation of equipment and appliances during use.

Package List

1 x Small Circuit Breaker With Box (Divided Into 2 Parts)

1 x Electrical Adhesive Tape

2 x Waterproof Cover

2 x Waterproof Connector

2 x Protection Ring

2 x Waterproof Ring

6 x Screw

4 x Expansion Screws

4 x Connecting Terminal
