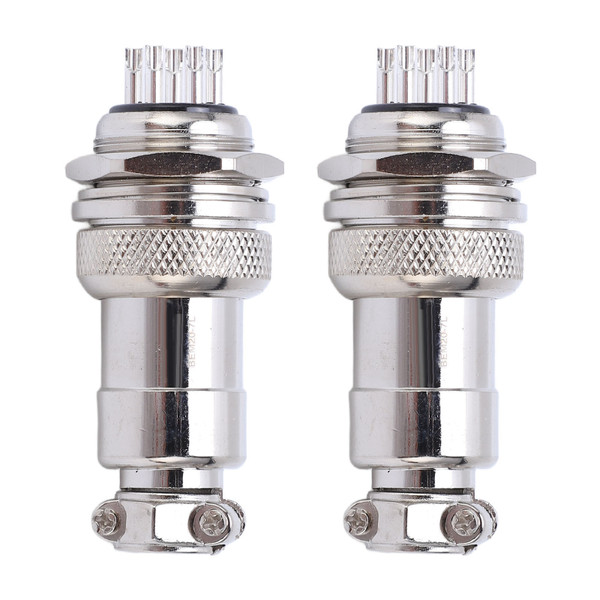

Product Overview
Shell Material: Zinc alloy
Connector Material: Silver plated copper
Plug Life: 500 times
Insulation Resistance: 1000MΩ
Contact Resistance: 3MΩ
Hole Size: Approx. 20mm / 0.8in
Voltage: AC DC 250V
Vibration Frequency: 10-100Hz
Features
1、ZINC ALLOY SHELL: Zinc alloy has good mechanical properties and wear resistance at room temperature. Using it to make shells can prolong the service life of aviation connectors.
2、SILVER PLATED COPPER CONNECTOR: Using copper silver plated contacts, the aviation connector has good conductivity, sensitive contact, which is stable and reliable.
3、STABLE PERFORMANCE: Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion proof, and the shell is not easy to be corroded.
4、2PCS IN A SET: There are 2PCS aviation connectors in the set, each with a plugging life of more than 500 times, which will definitely meet your various work needs.
5、WIDE APPLICATION: Connectors are widely used in data acquisition systems, mechanical equipment, audio and video, communications, automotive and other industries.
Package List
2 x Aviation Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.17 Inch |
| Length | 3.12 Inch |
