Product Overview

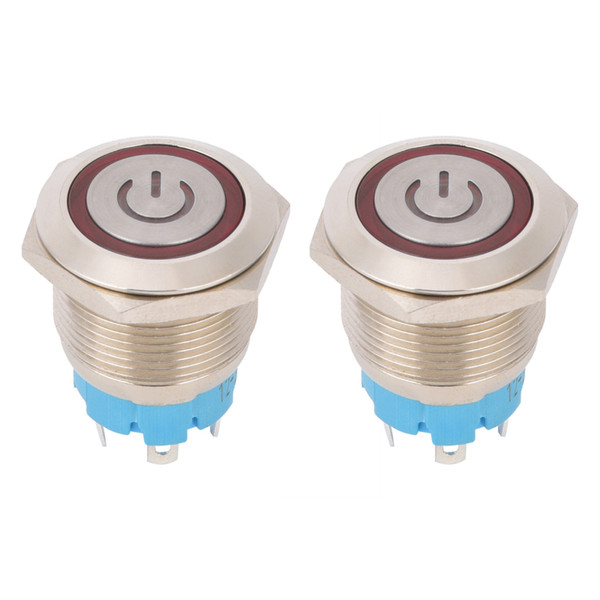

Item Type: Push Button Switch
Installation Diameter: 19mm
Rated Voltage: 12-24VDC
Emitting Color: Red, Green, Yellow, Blue, White(optional)
Contact Structure: 1NO
Shell Material: Stainless Steel
Size: Approx. 27 x 19mm / 1.1 x 0.7in
4 Pin: 1NO, positive and negative pole of power lamp, 1 common end
Installation Diameter: 19mm
Rated Voltage: 12-24VDC
Emitting Color: Red, Green, Yellow, Blue, White(optional)
Contact Structure: 1NO
Shell Material: Stainless Steel
Size: Approx. 27 x 19mm / 1.1 x 0.7in
4 Pin: 1NO, positive and negative pole of power lamp, 1 common end
Features
1、The protection grade is IP65, the product will not be easily damaged
2、Adopt stainless steel shell with high-end appearance and good touch
3、The contact structure uses 1NO method which can make sure stable performance
4、The mounting diameter is 19mm for easy installation and removal
5、Available in five colors for choice: Red, Green, Yellow, Blue, White
Package List
2 x Push Button Switch
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 1.17 Inch |
| Length | 3.51 Inch |
