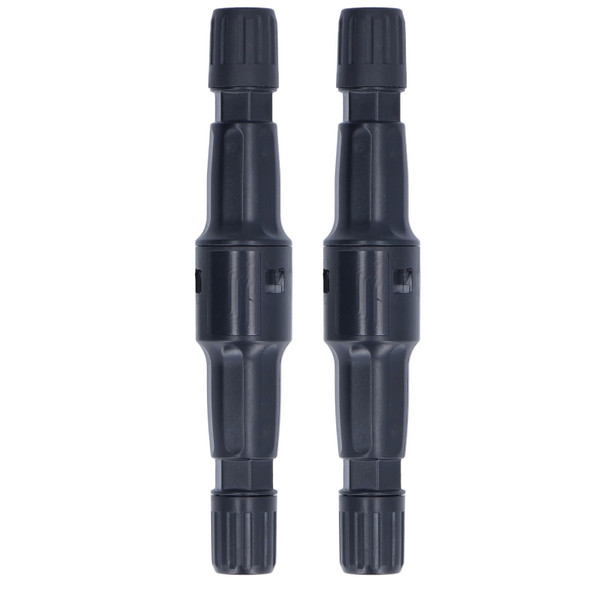

Product Overview
Item Type: Solar PV Connectors Set
Material: PPO Plastic Body, Copper Tin Plated Hardware, PV Special Fuse
Specifications (rated Current): 10A 15A 20A 30A
Model: MC 1515F
Description: Built in 1500V PV Fuse
Absolute Green Material: PPO Material
Conductor Material: Copper Tinned
Ambient Temperature: -40℃~+90℃
Product Temperature Resistance: -40℃~+135℃
Security Level: DCII
Waterproof Grade: IP68
Contact Resistance: ≤0.35mΩ
Connection System: Multi Point Connection
Self Locking System: Embedded
Pull out Force: ≥50N
Insertion Force: ≤50N
Resistance Level: Ul94 VO
Scope of Application: Solar Panel Connection
Weight: Approx. 87g / 3.1oz
Material: PPO Plastic Body, Copper Tin Plated Hardware, PV Special Fuse
Specifications (rated Current): 10A 15A 20A 30A
Model: MC 1515F
Description: Built in 1500V PV Fuse
Absolute Green Material: PPO Material
Conductor Material: Copper Tinned
Ambient Temperature: -40℃~+90℃
Product Temperature Resistance: -40℃~+135℃
Security Level: DCII
Waterproof Grade: IP68
Contact Resistance: ≤0.35mΩ
Connection System: Multi Point Connection
Self Locking System: Embedded
Pull out Force: ≥50N
Insertion Force: ≤50N
Resistance Level: Ul94 VO
Scope of Application: Solar Panel Connection
Weight: Approx. 87g / 3.1oz
Features
1、IP68 Waterproof: The solar PV connectors set has good water resistance, and the waterproof level reaches IP68.
2、Anti UV: 1500V solar PV connectors have excellent anti aging and anti UV ability, very durable.
3、Easy to Plug Unplug: The Waterproof Solar Fuse Connector is easy to plug and unplug and compatible with solar photovoltaic connectors.
4、PPO Shell: The solar built in fuse connector's shell is made of PPO, which is heat resistant, abrasion resistant, flame retardant and stain resistant.
5、Scope of Application: Solar PV connectors are suitable for solar panels, solar cables, solar controllers, etc.
Package List

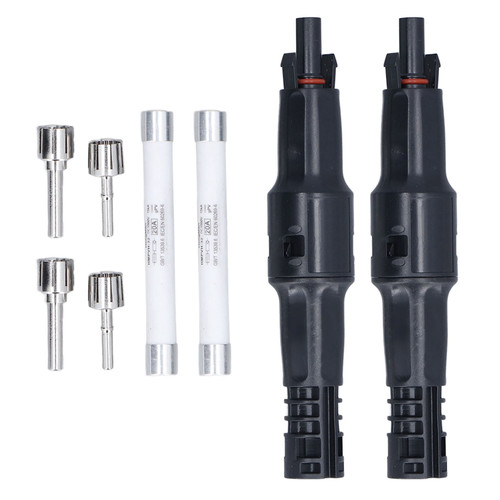

2 x Solar PV Connectors Set
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 2.34 Inch |
| Length | 6.24 Inch |
