Product Overview
Features:
Specifications:
Material: aluminum alloy
Model: AL3000-03
Regulating range: 0.05~1 (Mpa)
Maximum service pressure :1 (Mpa)
Connector: G3/8
Rated flow: 5000 L/min
Guaranteed pressure resistance: 1.5Mpa
Cup capacity: 50cm²
Minimum operating flow: 40L/MIN
Recommended oil: ISOVG32
Filtering accuracy: 40um
Temperature: 60 ℃
Weight: 257g
Package includes:

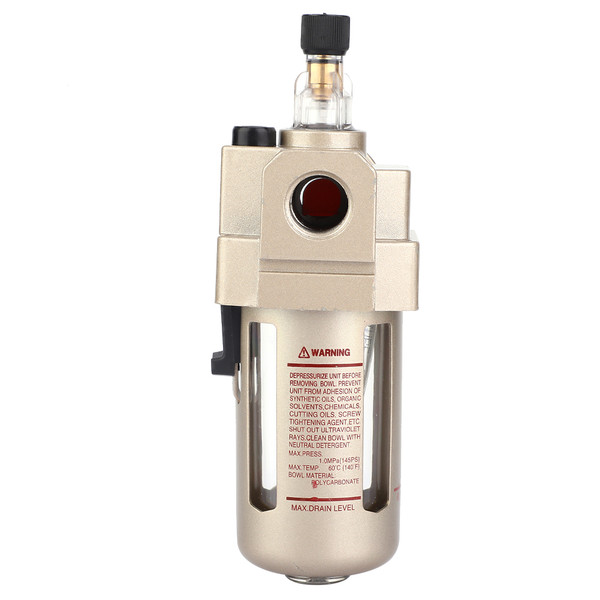

1 x Air Drain Filter
Specifications:
Material: aluminum alloy
Model: AL3000-03
Regulating range: 0.05~1 (Mpa)
Maximum service pressure :1 (Mpa)
Connector: G3/8
Rated flow: 5000 L/min
Guaranteed pressure resistance: 1.5Mpa
Cup capacity: 50cm²
Minimum operating flow: 40L/MIN
Recommended oil: ISOVG32
Filtering accuracy: 40um
Temperature: 60 ℃
Weight: 257g
Package includes:
1 x Air Drain Filter
Features
1、This filter regulator is adopted of Aluminum alloy die - casting, stable performance, durable
2、PC capacity cup, high strength, high temperature resistance, not easy aging, good sealing performance
3、It adopts of metal shell, effectively protect the container from damage and extend the service life
4、Adjust the size according to the oil mist device scale to achieve the lubrication purpose
5、The light weight and small design, easy installation, suitable for various installation environments
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 2.34 Inch |
| Length | 6.63 Inch |
