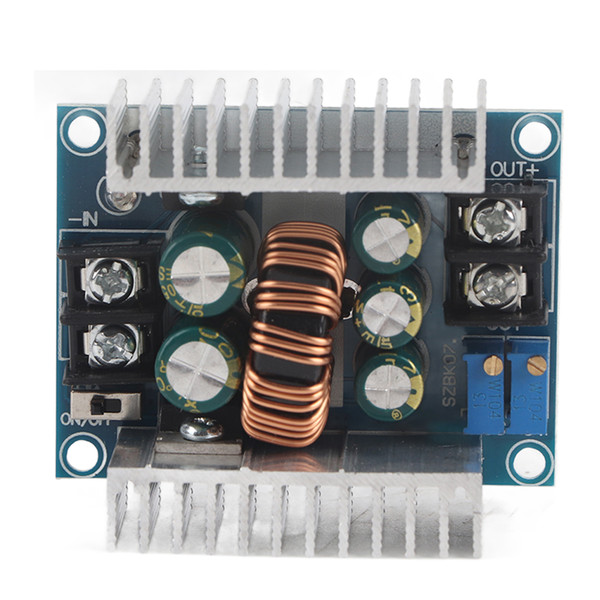

Product Overview
Features:
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A large current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these large current 30A screw terminals.
The buck module has 2 heat sink that could enhance heat dissipation.
When there is a big difference between input and output voltage, please decrease power and current.
Specifications:
Output Current: 20A(max.), 15A(suggested, )
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36
x 2.08 x 1.06"
Package
Includes:
1 x Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A large current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these large current 30A screw terminals.
The buck module has 2 heat sink that could enhance heat dissipation.
When there is a big difference between input and output voltage, please decrease power and current.
Specifications:
Output Current: 20A(max.), 15A(suggested, )
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36
x 2.08 x 1.06"
Package
Includes:
1 x Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current
2、The efficiency can be up to 96%, measured at 20A, converting 24V to 12V
3、It is designed with 75V/80A large current dual MOS tube
4、Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
5、Wiring is convenient with these large current 30A screw terminals
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.78 Inch |
| Length | 2.34 Inch |
