Product Overview
Shell Material: Aluminum alloy
Color: Red
Servo Size: Approx. 40 x 20 x 40.5mm / 1.57 x 0.79 x 1.59in
Operating Angle: 270°±3° (at 500 - 2500usec)
Pulse Width Range: 500 - 2500usec
Neutral Position: 1500usec
Rotation Direction: Counterclockwise (at 1000 - 2000usec)
Deadband Width: 5usec
No load speed: 0.24sec/60° - 0.17sec/60°
Operating Current: 140mA - 200mA
Peaking Stall Torsion: 29.5kg.cm - 32kg.cm
Blocking Current: 2600mA±10% - 3400mA±10%
Application: 1/8 1/10 1/12 scale RC car, robot, ship, robot, etc.
Features
1、Rapid Response: Equipped with potentiometer and high resolution digital chip to ensure stable performance, rapid response, strong interference resistance, low noise and fast heat dissipation.
2、High Torsion: Waterproof rubber sealing screw, made of nice aluminum alloy material with excellent craftsmanship, maximum torsion can get 32kg.cm, which can be achieved for long term use.
3、Heat Dissipation Capability: Hard anodized metal gears are used for higher accuracy and longer service life. CNC aluminum center case strengthens heat dissipation to ensure normal work.
4、270° Rotation: The controllable angle range of this servo is 0 to 270 degrees, with good linearity and high control accuracy. It can rotate 360 degrees when the power is off, which is very suitable for robot joint activities.
5、Wide Application: This 30KG servo can be widely used in robot, robot arm, climbing car, remote control car, remote control boat, remote control plane, etc.

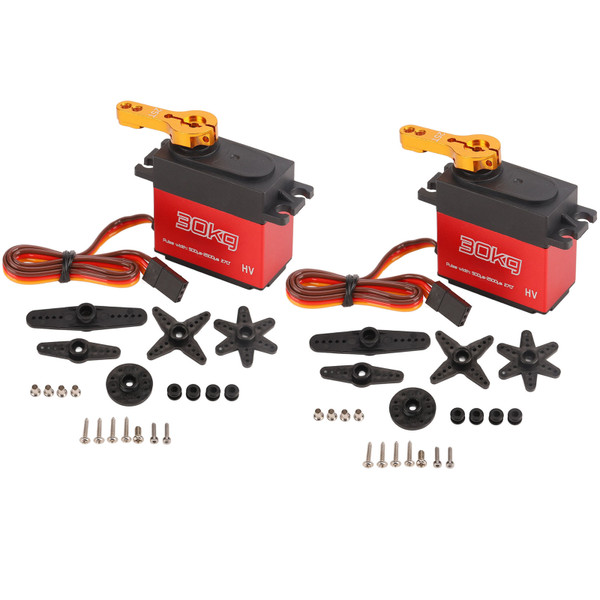

Package List
2 x Servo
2 x Metal Servo Arm
10 x Plastic Servo Arm
8 x Screw Barrel
8 x Rubber Gasket
14 x Screws
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.56 Inch |
| Length | 5.85 Inch |
