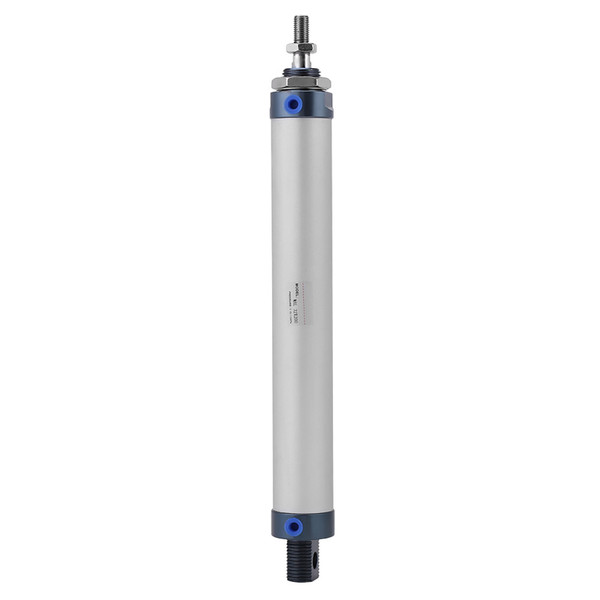

32mm X 200mm Single Rod Mini Pneumatic Air Cylinder Double Acting

Description:
This air cylinder is made of high quality aluminum alloy with durable performance. The stroke is 200mm and the inner diameter is 32mm, convenient to install, easy to use.
Features:
Adopt aluminum alloy cylinder, durable for use.
The front and rear cover is threaded with the cylinder pipe.
The piston seal is adopted in two-way sealing structure with compact size and oil storage function.
The front cover adopts self-lubrication bearing guide, perfect lubrication and guiding performance.
Convenient to install, easy to use.
Specification:
Stroke: 200mm
Material: Aluminum alloy
Operation medium: Air
Pressure: 0.15 -1.0MPa
Enduring pressure: 1.5MPa(15Psi)
Acting method: dual acting, single rod
Inner dia: Approx. 3.2cm / 1.3inch
Thread rod dia.: 10*1.25mm / 0.4 x 0.04inch
Hole dia.: G1/8
Size: Approx. 34.9*3.9cm / 13.7*1.5.inch
Weight: 621g
Package Included:
1 x Air Cylinder

Features

1、Adopt aluminum alloy cylinder, durable for use.
2、The front and rear cover is threaded with the cylinder pipe.
3、The piston seal is adopted in two‑way sealing structure with compact size and oil storage function.
4、The front cover adopts self lubrication bearing guide, perfect lubrication and guiding performance.
5、Convenient to install, easy to use.
