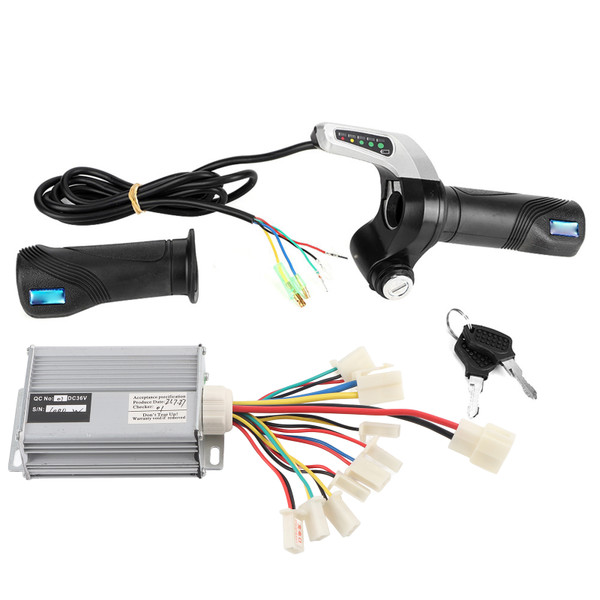

36V 1000W Electric Bike Brushed Speed Box Controller Throttle Grip Kit for 7/8in Handle Bar

Features:
Rotated throttle accelerator for electric bicycle with power display. The 5 LED battery indicator design, will offer you much convenience.
Skid resistance grain design, it is safer and comfortable to grip during driving.
Simple installation, designed to fit for standard 7/8 inch (22.2mm) handle bars.
Comes with undervoltage protection function, the angle of rotation is 0 ° -70 °.
The cable length is approximately 59 inches (1.5m), providing you with much convenience.
Specification:
Item Type: Speed controller throttle grip kit
Condition: Brand new
Material: Plastic
Color: As pictures shown
Current Limit: 32A
Rated Power: 1000 W
Undervoltage Protection: 31.5V
Motor Set: DC motor brushless
Speed Adjustment Signal: 0.8V -4.3V
Power Display:
Normal: 35V above, 3 green LED
Half: 35V-32V, yellow LED
Vacuum: 32 V or less, red LED
Angle of Rotation: 0 ° -70 °
Operating Temperature: -20 -+ 50℃
Fitment: Fits handle bars of standard 7/8 inch (22.2mm)
Battery Indicator: 5 LEDs
Cable Length: Approx.59 inches/1.5m
Definition of Controller Cables Interface:
Battery: Thick black (negative power) / red thick (positive power)
Motor: Yellow thick (negative motor) / blue thick (positive motor)
Power Switch: Red slim (VDC) / blue ultra-slim
Indicator: Red slim (indicator power output) / black ultra-slim (negative indicator)
Brake : Yellow thin (brake signal) / black slim (negative power)
Speed Regulator: Thin blue (speed handlebar signal input) / thin black (negative power) / thin red (5 V positive power)
Charging Port: Ultra-thin red (positive charge input power) / ultra-thin black ( negative power)
Brake Light: Red ultra-slim (positive power) / black ultra-slim (negative power)
Sport: Yellow ultra-slim / green ultra-slim(speed limit, connect the wires together)
Package List:
1 x Controller
1 x Accelerator
1 x Power Cord
1 x Handle
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
