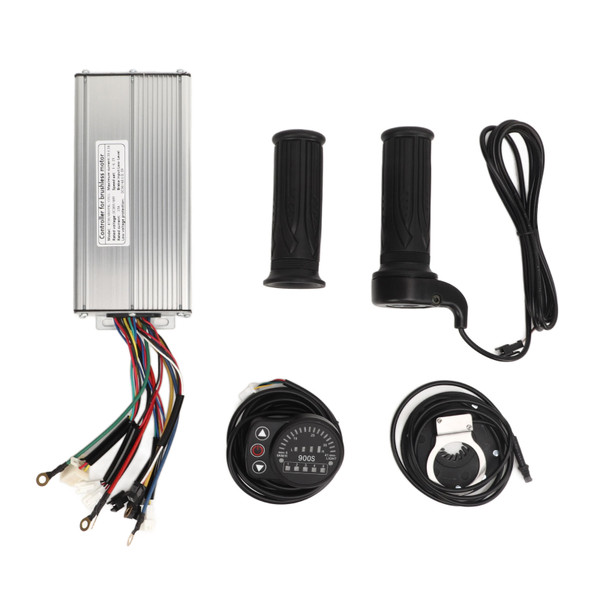

36V 48V 1000W Electric Bicycle Controller Kit 30A Sine Wave Controller LED900S Panel 10B Power Magnetic Point 20X Full Throttle Grip

Rating *

Name

Email *

Review Subject *

Comments *

$110.72

Shipping: 3.99$ per item

Product Overview

Item Type: Electric Bike Controller Kit
Material: Aluminum alloy, PC, Plastic, Magnet, Rubber
Weight: Approx. 1097g / 38.7oz
Controller Parameters:
Controller Material: Aluminum Alloy
Maximum Current: 30±2A
Rated Current: 15A
Speed Setting: 1-4.2V
Brake Input: Low Level
Applicable Motor: 1000W
Panel Parameters:
Panel Material: PC
Model: For KT LED900S
Suitable: For 22.2mm Diameter Handlebar Installation
Interface: 5pin
Panel Display Function Description: 6KM/H Boost Function, Strip Speed Indicator, Power Indicator, Power Ratio Gear, LED Function Indicator
Assisted Magnetic Point Parameters:
Material: Plastic, Magnet
Line Length: 100cm / 39.4in
Connector: 3 Pin SM Connector
Installation Position: Left Side
20X Full Throttle Grip Parameters:
Material: Rubber
Line Length: 180cm / 70.9in
Connector: 3 Pin SM Connector

Features

1、Package: The kit includes a 30A sine wave controller, for KT LED900S panel, 10B power sensor, and 20X full throttle grip, which can be used alone or in combination.
2、Great Replacement: Suitable for 36V 48V 1000W motor, which can be used for the modification and replacement of damaged parts of electric power bicycle, electric bicycle, electric scooter, etc. You can modify and use it according to your own situation, so as to improve the fun of riding.
3、Convenient To Use: The panel adopts ordinary interface, and the shell is made of PC material. It provides you with a variety of display functions, such as 6KM/H boost function, bar speed indicator, power indicator, power ratio gear, and LED function indicator. It is easy to read the data during riding and help you to grasp the riding dynamics at any time.
4、Safe And Reliable: Sine wave controller has low noise, stable start, high safety, heat and over current protection. The controller with a groove design, which protects the internal circuit from thermal overload due to its good heat dissipation.
5、Easy To Install: This electric bicycle motor controller kit is easy to install and use, comes with panel and 20X full throttle grip, suitable for 22.2mm handlebar.
