Product Overview
Condition:100% Brand New

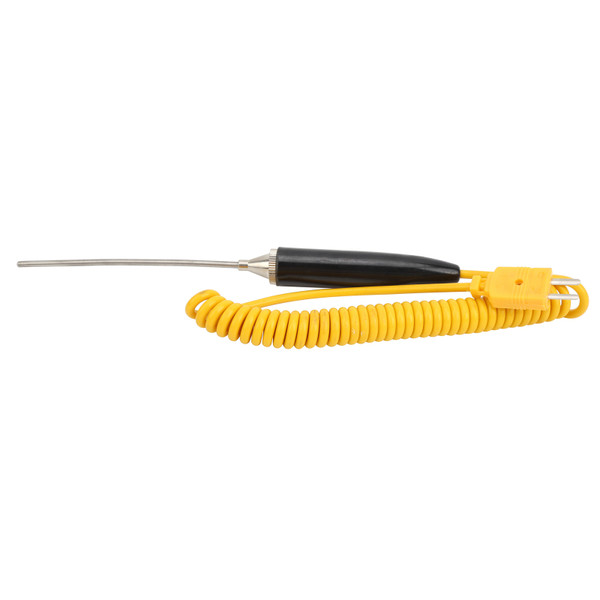

Item Type: Handheld Thermocouple
Index Number: K
Operating temperature: 0-800 degrees Celsius (long-term), 0-1100 degrees Celsius (short-term)
Material: 304 Stainless Steel
Probe Diameter: Approx. 3mm/0.1in
Probe Length: Approx.100mm/3.9in
Measurement Object: Copper, tin, aluminum, furnace, etc.
Application Range: Widely used in petroleum, chemical industry, machinery, metallurgy, textile, food, aerospace chemical industry, etc.
Working Principle: The electrode of the armored thermocouple is composed of two different conductor materials. When there is a temperature difference between the measuring terminal and the reference terminal, a thermoelectric potential will be generated, and the working instrument will display the temperature value corresponding to the thermoelectric potential.
Overview: Armored thermocouples and thermal resistances have the advantages of bending, high pressure resistance, fast thermal response time and sturdiness. They are the same as assembled thermocouples and thermal resistances. They are used as sensors for measuring temperature, usually with display instruments, The recorder is used in conjunction with the controller, and can also be used as a temperature sensing element for assembled thermocouples and thermal resistances. It can directly measure the temperature of liquid, steam and gas medium and solid surface in the range of 0°C ~ 1100°C (thermocouple), -200 ~ 500°C (thermal resistance) in various production processes. Armored thermocouples are the same as general industrial thermocouples, and are matched with display instruments. They can automatically detect or adjust the surface temperature of gas, liquid medium or solid within a certain range.
Item Type: Handheld Thermocouple
Index Number: K
Operating temperature: 0-800 degrees Celsius (long-term), 0-1100 degrees Celsius (short-term)
Material: 304 Stainless Steel
Probe Diameter: Approx. 3mm/0.1in
Probe Length: Approx.100mm/3.9in
Measurement Object: Copper, tin, aluminum, furnace, etc.
Application Range: Widely used in petroleum, chemical industry, machinery, metallurgy, textile, food, aerospace chemical industry, etc.
Working Principle: The electrode of the armored thermocouple is composed of two different conductor materials. When there is a temperature difference between the measuring terminal and the reference terminal, a thermoelectric potential will be generated, and the working instrument will display the temperature value corresponding to the thermoelectric potential.
Overview: Armored thermocouples and thermal resistances have the advantages of bending, high pressure resistance, fast thermal response time and sturdiness. They are the same as assembled thermocouples and thermal resistances. They are used as sensors for measuring temperature, usually with display instruments, The recorder is used in conjunction with the controller, and can also be used as a temperature sensing element for assembled thermocouples and thermal resistances. It can directly measure the temperature of liquid, steam and gas medium and solid surface in the range of 0°C ~ 1100°C (thermocouple), -200 ~ 500°C (thermal resistance) in various production processes. Armored thermocouples are the same as general industrial thermocouples, and are matched with display instruments. They can automatically detect or adjust the surface temperature of gas, liquid medium or solid within a certain range.
Features
1、It is resistant to high voltage, has a fast thermal response time and is durable.
2、It can directly measure the temperature of copper/tin/aluminum and other liquid, vapor and gas media as well as solid surface temperatures from 0°C to 1100°C (short‑term measurement) in various production processes.
3、The thermocouple has simple structure, easy to use, very precise and has long service life.
4、It adopts handheld design, small in size, which is convenient to use and carry.
5、Made of stainless steel, it is not easy to corrode and rust, and it can be used for a long time.
Package List
1 x Thermocouple
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.78 Inch |
| Length | 9.75 Inch |
