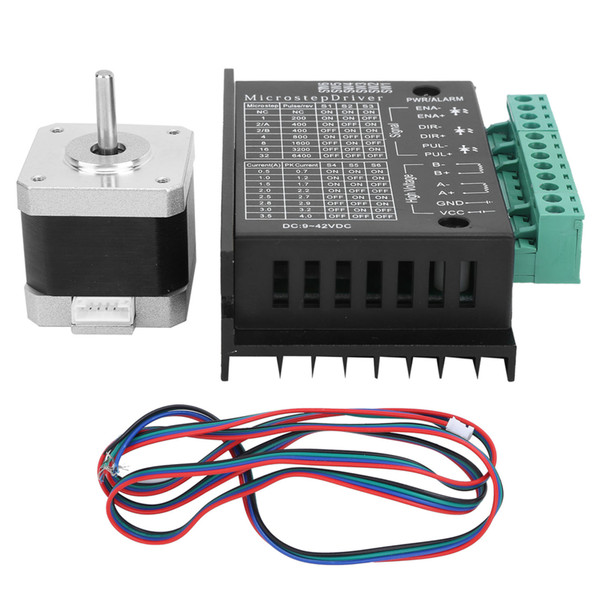

42 Stepper Motor Drive Set Electronic Component Module 0.4N.M 17HS4401S+TB6600 4A

Item Type: 42 Stepper Motor Drive Set
Number of Phases: 2
Phase Resistance (20℃): 2.4 x (1±15%) π/phase
Keep Torsion: ≥420mN. m
Steering (looking at Shaft Extension): A-AB-B-CW
Maximum No-Load Operating Frequency: ≥1900 PPS
Electric Strength: AC600V/1mA/1S
Moment of Inertia: 57.3g. cm²
Step Angle: 1.8°±0.09°
Rated Current: DC 1.5 A/phase
Phase Inductance (1KHz): 3.7×(1±20%) mH/phase
Positioning Torsion: 15 mN.m REF.
Maximum No-Load Starting Frequency: ≥1500 PPS
Insulation Resistance: 100 M2π (DC 500V)
Insulation Class: Class B
Size: Approx. 23.5mm / 0.9in
18mm / 0.7in
2mm / 0.1in
4.5mm / 0.2in
22mm / 0.9in
9.4mm / 0.4in
42.3mm / 1.7in
31mm / 1.2in
16.2mm / 0.6in

Features

1、The motor wire is made of pure copper enameled wire, which is made by winding process.
2、The steel is arranged uniformly, the temperature rise of the motor is lower, and there will be no deformation and noise in long‑term transportation.
3、Using silicon steel bearing material, strong and durable, has a long service life.
4、The surface is coated with imported rotor glue, and the textile silicon steel is oxidized to reduce burrs after grinding.
5、Compared with the same period in the industry, the motor torsion is larger, the output is more stable and the noise is lower.

Package List

1 x Motor

1 x Drive

1 x Line
