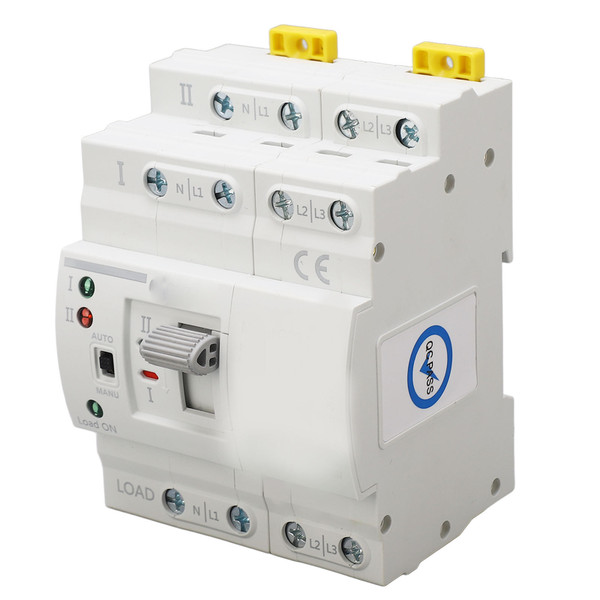

4P 63A Dual Power Automatic Transfer Switch Quick Response PC ATS Transfer Changeover Switch 220VAC

Item Type: Dual Power Automatic Transfer Switch
Material: PC Flame Retardant
Rated Current In: 63A
Grade: PC
Frequency: 50 60Hz
Standard: For IEC60947 6
Rated Short Circuit Current Limit (RT16 00 63A): 50KA

Features

1、PC GRADE SWITCH: This dual power automatic transfer switch is designed for infrequent switching and features a dual position design (A as the primary power source and B as the backup power source). It is suitable for AC systems with a frequency of 50 to 60Hz.
2、SEAMLESS POWER TRANSFER: The main function of this automatic transfer switch is to automatically switch to the backup power source (B) when the primary power source (A) fails, ensuring uninterrupted operation (switching time less than 50 milliseconds) and effectively resolving issues caused by power outages.
3、WIDE TEMPERATURE RANGE: Designed to operate in a temperature range of ‑5℃ to +40℃, with an average temperature below +35℃ within 24 hours. It can also withstand storage temperatures ranging from ‑25℃ to +55℃, with a short term tolerance of up to +70℃ within 24 hours.
4、HUMIDITY CONTROL: When the ambient temperature is +40℃, the relative humidity at the installation site should not exceed 50%. The relative humidity can be higher at lower temperatures. For example, when the average lowest temperature in the most humid month is +20℃, the maximum average relative humidity for that month can arrive 90%. Appropriate measures should be taken to prevent condensation caused by temperature changes.
5、POLLUTION RESISTANCE: With a pollution degree of 3 (conductive pollution or non conductive pollution that becomes conductive due to condensation), this ATS can be installed vertically or horizontally in cabinet applications, ensuring reliable performance even in polluted environments.

Package List

1 x Switch
